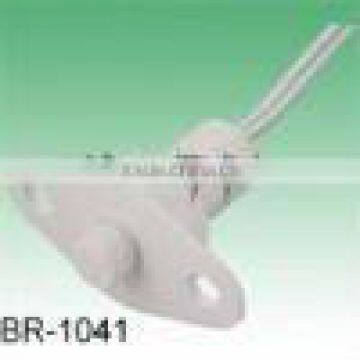

Window Magnetic Contact Switch With UL/CE
Negotiable
/ Piece
500 Pieces(Min. Order)
- Ningbo
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Sentek | |
| Model Number | BR-1041 | Max. Current | 0.5A | |
| Max. Voltage | 100V |
Product Description
Specifications
window magnetic contact switch, door contact UL&CE1) Push button switch
2) Diameter: 3/4", press fit
3) Standard 18" 22AWG
Magnetic contact, contact switch, door contact
Features:
1)Self-locking
2)Spacer included
3)Longer leads available
4)Wide gap up to 1 1/2" with big bare earth magnet
5)Colors: white, brown, grey
Part Number | Loop Type | Reed Form | Gap (Inch (mm) ) | Maximum Initial Contact Resistance (Ohm) | Maximum Contact Rating (W) | Maximum Switching Voltage (VDC/VAC) | Maximum Switching Current (A) |
BR-1041 | Closed | N/O | 1/4 (6) | 0.150 | 10 | 100 | 0.5 |
BR-1041A | Open | N/C | 1/4 (6) | 0.150 | 3 | 30 | 0.2 |
BR-1041C | Closed & Open | SPDT | 1/4 (6) | 0.150 | 3 | 30 | 0.2 |
