Home > Products > Magnetic Contacts > UL Magnetic Switch Steel Door Contact

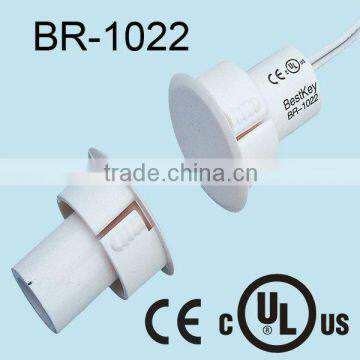

UL Magnetic Switch Steel Door Contact

FOB Price

US$ 1.5 - 2 / Set

350 Sets(Min. Order)

Port Ningbo

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Sentek
Model Number	BR-1022		Usage	Door

Product Description

Specifications

steel door contact
1" diameter press to fit
Suitable for steel door install
Self-locking
Special leads available

steel door contact

The Sentek BR-1022 Series Steel Door contacts are designed specifically for use in the steel doors commonly found in commercial building applications. The unique housing design features a rugged unibody construction with flexible ribbed sides for quick, secure installation without gluing. The magnet housing isolates the magnet from the surrounding steel for maximum gap distances, both make and break. Over seven models including: Wide Gap, SPDT, DPDT, and Biased for High Security applications make the BR-1022 Series the most widely used and comprehensive line available.

Fly leads and terminal options available
Designed specifically for use in steel doors
Special ribbed sides allow for easy installation
Rugged unibody construction for maximum durability and reliability
Terminal models available for easier installation
Regular, Wide Gap, SPDT, DPDT, and High Security models available
Rare Earth Magnet designed for steel door with top channel available

Part Number	Loop Type	Reed Form	Closed Gap [Inch (mm) ]	Depature Gap [Inch (mm) ]	Maximum Initial Contact Resistance (Ohm)	Maximum Contact Rating (W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current (A)
BR-1022	Closed	N/O	0.85 (22)	0.95(24)	0.150	7.5	100	0.4
BR-1022 WG	Closed	N/O	1 (26)	1.1(28)	0.150	7.5	100	0.4
BR-1022 A	Open	N/C	3/4(19)		0.150	3	30	0.2
BR-1022 C	Closed &Open	SPDT	3/4(19)		0.150	3	30	0.2
BR-10122 D	DPDT	2SPDT	3/4(19)		0.150	3	30	0.2
