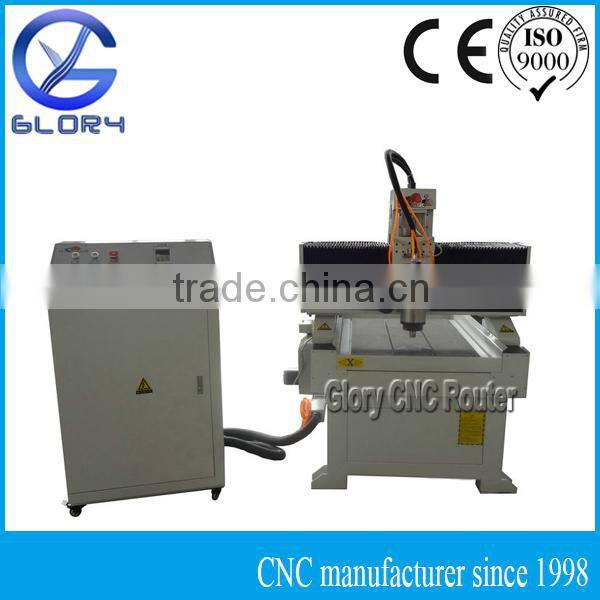

Mini CNC Stone Engraving Machine
- Qingdao/Tianjin
- T/T
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | Glory | |
| Model Number | GY-S6090B | Voltage | 380V/220V | |
| Power(W) | varied | Dimension(L*W*H) | 1200*850*1200kg | |
| Weight | 1000kg | Certification | CE, ISO | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
mini cnc stone engraving machine6090 working area
4.5 kw water cooled spindle
3 axis
CE, ISO approved
| Mini CNC Stone Engraving Machine |
|---|
 |
| Highlight | |
|---|---|
This machine is specially used for engrave stone materials. It can engrave word and various graphic on the stones. Also, it can be used for timber, density board and other non-metallic material and light metals as a wood cnc router. | |
| Product Features | |
| 1. | The heavy-duty machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever. |
| 2. | Y axis adopts high precision helical rack and pinion with high denticity. |
| 3. | Well compatibility: CAD/CAM designing software, such as type3/castmate/Artcam/wentai, etc. |
| 4. | This machine has the function of re-carving after break point or power failure and it can estimate the processing time. |
| 5. | Adopting advanced DSP system with USB interface, operate with the convenient handle, which will not take any computer resources. |
| 6. | Water proof and dustproof design for the CNC machine protects the transmission parts from broken. |
| 7. | For every set cnc stone engraving machine three axes adopt Taiwan high precision square guide rail, X and Y axes adopt rack and pinion transmission, fast working,high efficiency and low cost; Z axis adopts Taiwan screw,with high precision and longevity. |
| 8. | Water tank and automatic water cooling system for cutters. |
| 9. | High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance. |
| 10. | We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs. |
| Main Parts |
|---|
|
| Technical Parameters | |
|---|---|
| SPECIFICATION | GY-S6090B |
Working Area (X Axis) | 600mm |
Working Area (Y Axis) | 900mm |
| Clearance (Z Axis) | 120mm |
| Spindle | 2.2kw water cooled |
| Spindle Speed | Adjustable 0-24,000 rpm |
| Tool Change | Manual Tool-Change |
Drive System (X & Y Axes) | Helical Rack & Pinion |
Drive System (Z Axis) | Germany/Taiwan ball Screw |
| Drive Motors | Four sets stepper motors |
| Inverter | Fuling |
| Yako | Yako |
| Command | G code |
| Cutter diameter | 3.175-12.7mm |
| Maximum Idling Speed | 35m/min |
| Precision | 0.05mm |
| Table Top | Aluminum T-slot table protected with PVC |
| Controller | DSP handle |
| Power Requirements | 3-phase 380V/50HZ or as request |
| Weight | Approx 1000kg |
| Other Sizes | 900*1500mm 1200*2400mm |
| Options | 1. Weihong/Syntec controller |
| Application Materials | |
|---|---|
| 1. | Marble/stone: engraving on various granite, bluestone, marble, grit stone, ceramic tile, soapstone, etc. |
| 2. | Metal: light metal like aluminum and brass |
| 3. | Woodworking: wood, plastic, PVC, density board, acrylic, etc. |
| Samples | |
| |
| |
| Service and Guarantee |
|---|
1. Technical supports and suggestions before you order a machine according to your work piece. |
Part Replacement |
Customers have to send the broken parts to us within one week to our factory address: |
| FAQ |
|---|
| 1. I never use this kind of machine before, is it easy to learn? |
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. |
| 2. If the machine has problems, what can you do to help? |
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed. |
| 3. How could I know if this machine is suitable for me? |
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided. |
| Related Machines |
|---|
|
| Package&Factory |
|---|
|
| Contact information |
|---|
|
We can chat online if you like. My Skype: jeanh007 Welcome to visit our factory at any time. : ) LinkedIn&Facebook: Jinan Glory Import and Export Trading Co.,Ltd |
