CNC Cutting and Shapping Machine for Wood With Dimension 1300X2500mm
- Tianjin/Qingdao
- T/T
You May Like
-
Rotate Spindle CNC Router for Engraving/Carving/Milling Zither
-
4 Axis 1325 CNC Router With 6KW HSD Spindle Syntec Controller
-
High Working Efficiency 4 Axis CNC Milling Machine
-
4 Axis 180 Degree Rotation Spindle 1325 Wood CNC Router
-
CNC Router Milling Machine 3D
-
Manual Tool Change 1325 CNC Router With Rotation Spindle
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | Glory | |
| Model Number | GY-M1325A | Voltage | 220V/380V | |
| Power(W) | varied | Dimension(L*W*H) | 1440mm*3040mm | |
| Weight | 1300kg | Certification | CE and ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
| CNC Cutting and Shapping Machine for Wood | |
|---|---|
| |
| Machine working video: http://youtu.be/k4K2o0fng3g, http://youtu.be/n3oq4Skt6LA | |
| Product Features | |
| 1. | Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe bodyis stabilized and will not be deformed forever. |
| 2. | Three axes adopt Taiwan brand linear guide rail with high precision. |
| 3. | Z axis adopts imported Germany or Taiwan made ball screw, so high precision and long life time using are assured. |
| 4. | X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission. |
| 5. | Well compatibility: CAD/CAM designing software, such as type3/castmate/wentai/artcam, etc. |
| 6. | This machine has the function of re-carving after break point or power failure and it can estimate the processing time. |
| 7. | Manual/automatic oil-injection system allows the machine maintenance mush easier. |
| 8. | Dust-collection device and considerate oil plate can always keep the working table clean. |
| 9. | High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance. |
| 10. | We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs. |
| 11. | Along with the machine, some spare parts, work fixtures and tools will be packed into the tool box. |
| 12. | Whole machine will be wrapped with cling plastic and then packed into fumigation-free IPPC wooden case. |
| Technical Parameters | ||
|---|---|---|
| Description | GY-M1325A | Optional |
| X Y working area | 1300*2500mm | 1500*3000mm |
| Z working area | 200mm | 300mm |
| Table size | 1440*3040mm | |
| Precision | 0.01mm | |
| Max idling speed | 35m/min | |
Spindle | 3.5kw air-cooled | Italy HSD |
Working mode | Stepper | Servo |
Operating system | DSP handle | Weihong |
Fixing | by suction | by clamp |
Vacuum system | 6 vacuum zones | |
| Ball screw | Taiwan made 2505-390 | German brand |
| Inverter | Fuling | Delta, Siemens |
| Vacuum pump | 5.5kw water-cooling | Air-cooling |
| Driver | Yako | Servo drivers |
| Spindle rotating speed | 0-24000r/min | 0-18000r/min |
| Power supply | 380V/50-60HZ | AC220V/50-60Hz |
| Command | G code, HPGL, U00, mmg, plt | |
| Rack and pinion | Helical, module 1.25 | |
| Diameter of cutter | 3.175-12.7mm | |
| Weight | Approx 1500kg | |
| Other options | 1.Alignment pop-up pins | |
Note: Such as the motor (step motor or servo motor optional), spindle (air cooled or water-cooled optional ),guide rail (linear guide rail or square linear guide optional ) and the table of the machine (Vacuum table, T-shot table, Combination of T-shot &Vacuum table) | ||

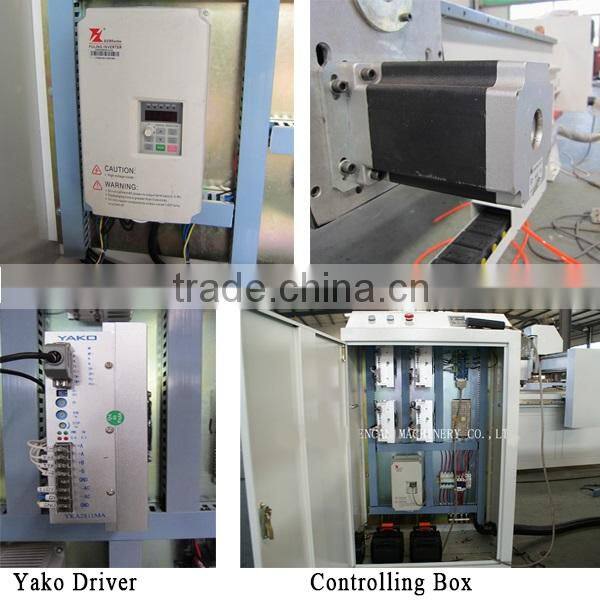

| Main Parts |
|---|
|
|
|
| Application | |
|---|---|
Applicable materials: | Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials. |
Processing effect: | Engraving, cutting, drilling, milling, enchase, relief, etc. |
| Samples | |
| |
| |
| Package&Factory | |
| Package | Whole machine will be totally wrapped with cling plastic to avoid rusting during shipping, and then fastened into fumigation-free wooden case |
| |
| FAQ |
|---|
| 1. I never use this kind of machine before, is it easy to learn? |
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. |
| 2. If the machine has problems, what can you do to help? |
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed. |
| 3. How could I know if this machine is suitable for me? |
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided. |
| Service and Guarantee |
|---|
1. Technical supports and suggestions before you order a machine according to your work piece. |
Part Replacement |
Customers have to send the broken parts to us within one week to our factory address: |
