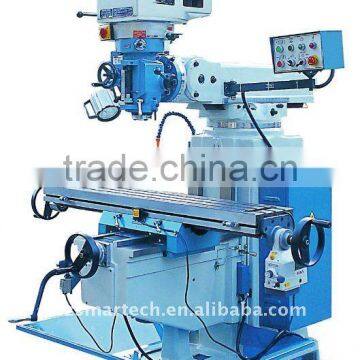

Turret Milling Machine SM-4VSLB
- Shenzhen (or others)
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | China | |
| Brand Name | SMARTECH | Model Number | SM-4VSLB | |
| Type | Vertical | CNC or Not | Normal | |
| Voltage | 380V | Power(W) | 3.75 kW (spindle) | |
| Dimension(L*W*H) | 2000*1700*2450 | Weight | 1750 kg | |
| Certification | ISO | Warranty | one year | |
| After-sales Service Provided | Overseas service center available |
Product Description
For more information please visit
- STANDARD ACCESSORIES:
1 Coolant system;
2 Halogen working lamp;
3 Draw bar;
4 Luxury electric control box ;
5 Way rubber cover (front & back);
6 Tool and tool box;
7 English operation manual, packing list and inspection certificate;
8 Power table elevating system;
9 Splash base pan;
- OPNTIONAL ACCESSORIES:
1 SINO digital read out system (2-axis OR 3- axis)
2 Chuck collect set
3 Coolant system
4 Luxury halogen working lamp
5 6 angle lock machine vise
6 58pcs clamping kit set
7 X-axis electric power feed unit
8 Y- axis electric power feed unit
9 3C-1001 X-axis gear type power feed unit
10 3C-1002 Y- axis gear type power feed unit
11 X-axis inverter motor variable feed system
12 Y- axis inverter motor variable feed system
13 Air power draw bar
- SPECS:
MODEL | SM-4VSLB |
Slide ways Structure | Y/Z: Square |
Table Size | 1370X250mm |
Travel | X - 1000mm |
Y - 420mm | |
Z - 420mm | |
Quill | 127mm |
Ram | 580mm |
Quill Diameter | 105mm |
Quill Feed Rate | 0.04, 0.08, 0.15mm |
Spindle Motor | 3.75kw (5HP) |
Spindle Taper | NT40 |
Spindle Speed | Variable: 50-3750rpm |
Head Tilt Angle | B&F ±45°, R&L ±90° |
Dist. Table-Spindle | 100-520mm |
Dist. Column-Spindle | 105-685mm |
Machine Weight | 1750kgs |
Dimension | 200X170X245CM |
