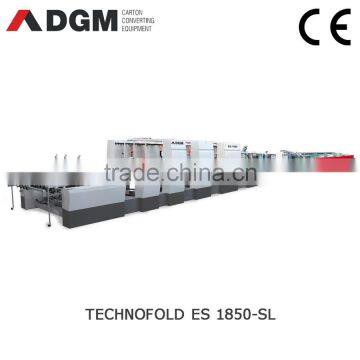

ES SERIES ES-1850-SL automatic folders&gluers

Straight Line

A:550-1650mm

B:100-1300mm

Lock-bottom Box

A:650-1850mm

B:max.1300mm

C:min.120mm

D:40-200mm

 4-corner Box

A:350-1850mm

B:180-1100mm

C:40-200mm

D:270-1450mm

 6-corner Box

A:600-1850mm

B:300-1100mm

C:50-200mm

D:220-625mm

1). Feeder section:

 • Continous friction feeder with variable speed .

 • Adjustable electronic pile vibrator.

 • Lateral feed gates fully adjustable to the width of the blank.

 • Two adjustable front feed knives.

2.Side register section

• Independent section with an unparallel lower carrier that guides the box to a handrail that allows a perfect blank alignment.

3.Pre-folding section:

 • Left hand glue flap pre-folder up to 180º.

 • 3rd crease lin pre-folding up to 135º.

 • 1st and 3rd crease openers.

4.Crash lock bottom section

• Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.

• Set of accesories for B-type lock bottom.

5.Lower gluing Unit

 • Two lower(left and right) gluing tanks.

 • Easy to remove and clean

6.Upper gluing unit

• Double upper gluing system by disc.

• Easy to remove and clean.

 • Smooth and accurate folding of 2nd and 4th creases .

 • Outer folding belts adjustable up to 180º with variable speed.

 • Two upper & two lower carriers with 40 mm lower and 80 mm outer belts.

 • Width-wise adjustable heavy duty compression rollers.

  • Upper and lower drive mechanism for length adjustment.

 • Equipped with automatic belt tension-adjusting system.

 • Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well aligned flow.

9.Press section(Delivery section):

 • Independent and motorized press section.

 • Manual and Automatic mode(follow up).

 • Upper section moves back and forward, allowing for different box length.

 • 6.5 meters total length with 4.7 meters effective pressure length.

 • Pneumatic pressure adjustment.

10)4 and 6-corner device

 •Motorized and untimed electronic back folding system with intelligent servo motor technology.

• Founded in 1985 under the previous name:

Taiwan Bi Cheng machinery, first Technofold ES series folder gluer into production.

• 1986-1989 started exporting to Southeast Asia.

• In 1990 sold the first folder gluer in China, opened domestic market.

• 1993 Laminating machine ETH series into production.

• 1998 Automatic die-cutter Technocut series into production.

• 2004 New 13,000 sqm.facilities in Huizhou,Guangdong province.

• Well communicated with important cities like Hong Kong, Shenzhen and Guangzhou

• 2007 CE certifications for all range of products.

• 2008 attended Drupa exhibition for the first time.

• 2012 Smartfold series intelligent folder gluer into production.
