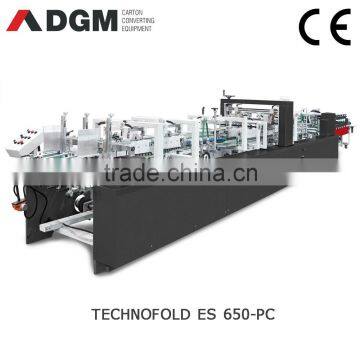

TECHNOFOLD ES 650-PC

Straight Line

A:80-650mm

B:50-600mm

Lock-bottom Box

A:130-650mm

B:600mm

C:min.60mm

D:20-150mm

1. Feeder section:

 • Independent and motorized friction feeder with variable speed.

 • Adjustable electronic pile vibrator.

 • Side feed gates fully adjustable to the width of the blank.

 • Two adjustable front feed knives.

2.Pre-folding section:

 • Left hand glue flap pre-folder up to 180º.

 • Third crease line pre-folder up to 135º.

 • 1st and 3rd crease openers.

3.Crash lock bottom section

• Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.

• Set of accesories for B-type lock bottom.

4.Lower gluing Unit

 • One lower(left side) gluing tank.

 • Easy to remove and clean

 • Electronic upper gluing system by guns.

5.Upper gluing unit

 • Double Upper gluing system by disc.

 • Easy to remove and clean.

6. Folding and Closing section:

 • Smooth and accurate folding of 2nd and 4th creases .

 • Outer folding belts adjustable up to 180º with variable speed.

 • Two upper & two lower carriers with 25 mm lower and 30 mm outer belts.

 • Width-wise adjustable heavy duty compression rollers(optional).

7.Trombone section:

 • Upper and lower drive mechanism for length adjustment.

 • Equipped with automatic belt tension-adjusting system.

 • Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well aligned flow.

8.Press section(Delivery section):

 • Independent and motorized press section.

 • Manual and Automatic mode(follow up).

 • Upper section moves back and forward allowing for different box length.

 • 3.2 meters total length with 2 meters effective pressure length.

 • Pneumatic pressure adjustment

• Founded in 1985 under the previous name:

Taiwan Bi Cheng machinery, first Technofold ES series folder gluer into production.

• 1986-1989 started exporting to Southeast Asia.

• In 1990 sold the first folder gluer in China, opened domestic market.

• 1993 Laminating machine ETH series into production.

• 1998 Automatic die-cutter Technocut series into production.

• 2004 New 13,000 sqm.facilities in Huizhou,Guangdong province.

• Well communicated with important cities like Hong Kong, Shenzhen and Guangzhou

• 2007 CE certifications for all range of products.

• 2008 attended Drupa exhibition for the first time.

• 2012 Smartfold series intelligent folder gluer into production.
