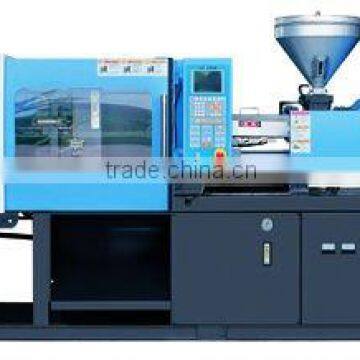

Injection Moulding Machine
Negotiable
/ Set
1 Set(Min. Order)
- T/T
You May Like
-
PET Preform Injection Moulding Machine
-
K-Series Injection Molding Machine
-
G-series Injection Molding Machine
-
Horizontal Type Plastic Injection Molding Machine 1680Ton
-
Injection Moulding Machine With CE Certificate for Car Pumper
-
Two Platen Large Capacity Plastic Injection Machine 2200 Ton for Polyurethane Foam Quality Choice
Product Details
| Condition | New | Product Type | Other | |
| Place of Origin | China | Brand Name | Powerjet | |
| Model Number | BJ50V1;BJ90V2;BJ120V2;BJ130V2 | Certification | CE |
Product Description
Specifications
high efficient proportional plunger variable pump saves electricity by 25%-50%. the economic is high.Features of hydraulic system
- Perfect combination between computer and hight effcient proposrtional plunger variable pump saves electricity by 25%-50%. The economic efficiency is high.
- with full flow filtration oil circuit of high precision return oil filter, the oil filter effect is up to NAS - 7 levels, can effectively avoid contanmination and deterioraion of hydraulic oil, thereby hydraulic parts work more stable and service life of hydraulic seals is longer.
Description:
| Description | Unit | BJ50V1 | BJ90V2 | BJ120V2 | BJ130V2 |
| Clamping Unit | |||||
| Clamping Force | KN | 500 | 900 | 1200 | 1300 |
| Opening Stroke | mm | 265 | 320 | 350 | 400 |
| Max daylight: | mm | 580 | 680 | 730 | 820 |
| Platen size | mm | 480x480 | 540x540 | 610x560 | 630x620 |
| Space between Bars(H*V) | mm*mm | 315x315 | 360x360 | 410x360 | 410x410 |
| Max. Mold Height | mm | 310 | 360 | 400 | 420 |
| Min. Mold Height | mm | 110 | 130 | 145 | 150 |
| Ejector Stoke | mm | 70 | 100 | 100 | 125 |
| Ejector Force | KN | 20 | 34 | 41.5 | 42 |
| Injection Unit | |||||
| Screw Diameter | mm | 26 28 32 | 30 36 42 | 36 42 46 | 36 42 46 |
| Screw L/D Ratio | 22.6 21 19.6 | 20 20 17 | 23 20 18 | 23.3 20 18.2 | |
| Injection Pressure | Mpa | 185 159 139 | 266 185 136 | 205 150 125 | 222 190.5 136 |
| Shot Volume | cm3 | 53 62 71 | 113 163 222 | 183 249 299 | 183 249 298 |
| Shot Weight(PS) | g | 50 58 66 | 106 153 208 | 172 234 281 | 172 234 281 |
| Shot weight(PS) | QZ | 1.7 2 2.3 | 3.7 5.4 7.2 | 6.1 8.3 9.9 | 6.1 8.3 9.9 |
| Injection Rate | g/sec | 64 73 84 | 54 78 106 | 88 120 144 | 69 95 113 |
| Plasticizing capacity | g/sec | 10 12 14 | 13 19 26 | 16 21 29 | 14 21 28 |
| Screw Stroke | mm | 120 | 160 | 180 | 180 |
| Screw Speed | rpm | 220 | 184 | 152 | 164 |
| Power Unit | |||||
| Hydraulic System Pressure | Mpa | 16 | 17.5 | 17.5 | 15.0 |
| Pump Motor Power | KW | 7.5 | 11 | 11 | 11 |
| Heater Power | KW | 3.5 | 6 | 7.8 | 7.5 |
| General | |||||
| Dry-cycle time | sec | 1.2 | 1.5 | 1.5 | 1.5 |
| Oil Tank Capacity | L | 120 | 180 | 200 | 210 |
| Machine Weight | Ton | 2.6 | 2.8 | 3.2 | 3.8 |
| Machine Dimensions(L*W*H) | m*m*m | 3.4X1.0X1.6 | 3.8x1.1x1.7 | 4x1.2x1.8 | 4.2x1.2x1.8 |
