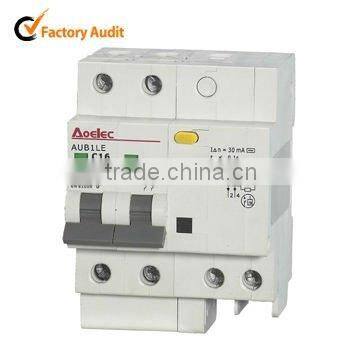

AUB1LE Modular Electronic combined RCD and MCB Device/RCBO
- 40000 Piece / Pieces per Month
- Ningbo/shanghai
- T/T D/P D/A
You May Like
-
AUB1LE Modular Electronic combined RCD and MCB Device/RCBO
-
AUB2LE with CCC certificate RCBO Circuit Breaker 4P
-
AUB2LE Modular Electronic RCD/MCB Combined Device
-
AUB2LE CCC certificate with 3ka earth leakage circuit breaker
-
AUB2LE Electronics combined RCD and MCB
-
AUB2LE with CE mark RCBO electrical products
Product Details
| Place of Origin | Zhejiang, China | Brand Name | AOELEC | |
| Model Number | AUB1LE | Type | Earth Leakage | |
| Poles Number | 2 |
Product Description
Function and Feature:
Provides protection against earth fault/leakage current,short circuit,overload,function of isolation
Provides complementary protection agaginst direct contact by human body
Effectively protects electric equipment against insulating failure
Provides comprehensive protection for household and commercial distribution systems
Handle can be locked with pad-lock prevent unwanted operation for safety
Technical Data:
Rated current(In):6,10,16,20,25,32,40,50,63A
Rated voltage(Un):230/240VAC
Breaking capacity(Icn):6kA
Rated frequency:50/60Hz
Rated residual current:30mA,100mA,300mA
Tripping characteristics:B,C
Number of poles:1P+N
Electrical endurance:4000 cycles
Mechanical endurance:10000cycles
Terminals:pillar type
Cable termination:25mm2
Torque of screw:2.5Nm
IP degree:IP 20
Standards:IEC/EN 61009-1
Catalog No. CTN Size:48x26x18cm
| In(A) | 30mA | 100mA | 300mA | QTY/Box | QTY/CTN |
| Model No. | Model No. | Model No. | PCS | PCS | |
| 6A | AUB1LE 2P 6A | AUB1LE 2P 6A | AUB1LE 2P 6A | 1 | 60 |
| 10A | AUB1LE 2P 10A | AUB1LE 2P 10A | AUB1LE 2P 10A | 1 | 60 |
| 15A | AUB1LE 2P 15A | AUB1LE 2P 15A | AUB1LE 2P 15A | 1 | 60 |
| 16A | AUB1LE 2P 16A | AUB1LE 2P 16A | AUB1LE 2P 16A | 1 | 60 |
| 20A | AUB1LE 2P 20A | AUB1LE 2P 20A | AUB1LE 2P 20A | 1 | 60 |
| 25A | AUB1LE 2P 25A | AUB1LE 2P 25A | AUB1LE 2P 25A | 1 | 60 |
| 32A | AUB1LE 2P 32A | AUB1LE 2P 32A | AUB1LE 2P 32A | 1 | 60 |
| 40A | AUB1LE 2P 40A | AUB1LE 2P 40A | AUB1LE 2P 40A | 1 | 60 |
| 50A | AUB1LE 2P 50A | AUB1LE 2P 50A | AUB1LE 2P 50A | 1 | 60 |
| 63A | AUB1LE 2P 63A | AUB1LE 2P 63A | AUB1LE 2P 63A | 1 | 60 |
About us:
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
