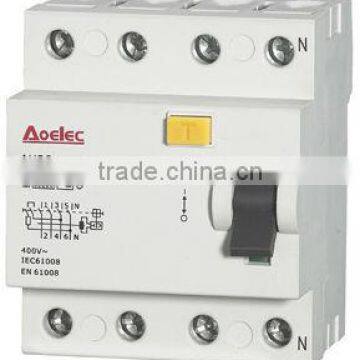

AUR3 with high breaking capacity 4P 40A 30mA ELCB RCCB
- Ningbo/shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Aoelec | |
| Model Number | AUR3 | Type | Magnetic | |
| Poles Number | 4 |
Product Description
Function and Feature:
Protection against earth/leakage current and residual current,fuction of isolation
Protection against fire hazard caused by insullation faults
Residual fault current indication
6kA high breaking capacity
Pin/fork type busbar terminal connection
Fire resistant plastic parts withstand abnormal heating and strong impact
Automatically disconnect the circuit when earth/leakage current occurs
or exceeds the rated sensitivity
Independent of power supply and line voltage,and free from external interference
Voltage fulctuation
35mm DIN rail mounting
Technical Data:
Rated current(In):16,20,25,32,40,63,80A
Rated voltage(Un):230/240VAC,400/415VAC
Rated residual current:10mA,30mA,100mA,300mA
Number of poles:1P+N(2P),3P+N(4P)
Electrical endurance:10000cycles
Mechnical endurance:20000cycles
Terminals:pillar type
Cable termination:35mm2
Torque of screw:2.5Nm
IP degree:IP20
Standards:IEC/EN 61008-1
Catalog No. CTN Size:47.5x25.6x17.5cm
| In(A) | 30mA | 100mA | 300mA | QTY/Box | QTY/CTN |
| Model No. | Model No. | Model No. | PCS | PCS | |
| 16A | AUR3 3P+N 16A | AUR3 3P+N 16A | AUR3 3P+N 16A | 1 | 30 |
| 25A | AUR3 3P+N 20A | AUR3 3P+N 20A | AUR3 3P+N 20A | 1 | 30 |
| 32A | AUR3 3P+N 32A | AUR3 3P+N 32A | AUR3 3P+N 32A | 1 | 30 |
| 40A | AUR3 3P+N 40A | AUR3 3P+N 40A | AUR3 3P+N 40A | 1 | 30 |
| 63A | AUR3 3P+N 63A | AUR3 3P+N 63A | AUR3 3P+N 63A | 1 | 30 |
| 80A | AUR3 3P+N 80A | AUR3 3P+N 80A | AUR3 3P+N 80A | 1 | 30 |
About us:
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our ELCB RCCB have KEMA,TUV,SEMKO,CB and CE certificates.
