Manufacturer T Series Helical Cone Gearbox
- Ningbo Shanghai or Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Gearing Arrangement | Helical | Output Torque | 11-5713N.m | |
| Rated Power | 0.014~335Kw | Input Speed | 1500r/min | |
| Output Speed | 10-1450rpm | Place of Origin | Zhejiang, China | |
| Model Number | YBT | Brand Name | YBANG |
Product Description
Manufacturer T Series Helical Cone Gearbox
OBANG produces YB..series gear motors with international advanced level, including YBR series helical gear motors, YBF parallel shaft helical gear motors, YBK series helical bevel gear motors, YBS series helial worm gear motors, YBH series helical gear units, YBB series bevel helical gear units, YBT series bevel steering gears, WP series helical worm speed reducer, NMRV speed reducers and other small parts.

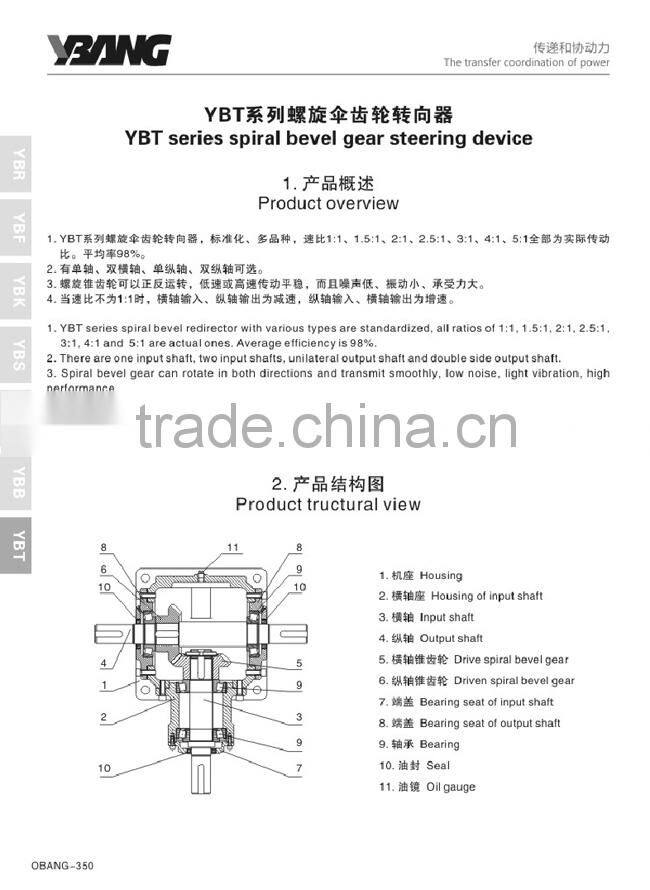

YBT series Bevel Steering Gears
T Series Helical Cone Gearbox
Type: | YBT series Spiral Bevel Redirector |
Model: | YBT…I-UD(O) |
Others: | YBT2,T4,T6,T7,T8,T10,T12,T16,T20,T25 |
Color: | Blue/Sliver or on customer request |
Material: | HT250 |
Ratio: | 1,1.5,2,2.5,3,4,5 |
Input power: | 0.014-335.0kw |
Output torque: | 11-5713N.m |
Input speed: | 10-1450rpm |
Bearing: | C&U Bearing,NSK or on customer's request |
Seal: | CTY,CFW or on customer's request |
Lubricant: | Mineral |
Warranty: | 1Year |
Product features:YBT series use European technology. It has many-side steering function so that can turn around stably in low speed or high speed with lower noise, smaller vibration and strong endurance.
Application areas: Paper printing, metallurgy, mining, petrochemical industry, lifting transport, electricity, plastics machinery, building materials, environmental protection machinery, cement machinery, shipping, railway vehicle, textile printing and dyeing, etc.
(1) With excellent quality
(2) Reasonable price
(3) Promise to delivery on time
(4) Large output torque
(5) Safe, reliable, economical and durable
(6) Stable transmission, quiet operation
(7) High heat-radiating efficiency, high carrying ability
(8) Certificate of quality: ISO9001:2008
(9) Every product must be tested before sending
(10)Made of high-quality aluminum alloy, light weight and non-rusting
(11)Large output torque.
(12) Smooth running and low noise.
(13) High radiating efficiency.
(14) Good-looking appearance, durable service life and small volume.
(15) Suitable for Omni bearing installation.
Welcome to us for more details and parameters
If you have any questions, please feel free to contact me.
Best regards,
Kayla
