Like WPO Screw Press Gearbox for Ball Mill
- Shanghai or Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Gearing Arrangement | Worm | Output Torque | 23n.m | |
| Rated Power | 0.33kw | Input Speed | 1500rpm | |
| Output Speed | 150rpm | Place of Origin | Zhejiang, China | |
| Model Number | WPO40 1:15 | Brand Name | Ybang |
Product Description

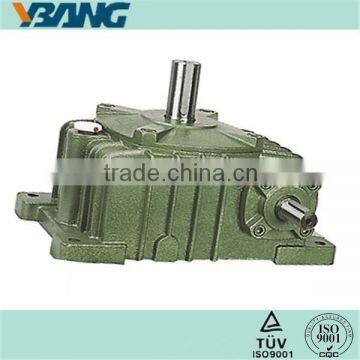

Like WPO Screw Press Gearbox for Ball Mill
Design characteristics:
1.Use low-carbon cast iron cementation processing completely.
2.The gear and the gear shaft precision is high.
3.Small volume , High torque.
4.Can be 2 or 3 sets of gear reducer composed of multi-level, to get great gear ratio.
5.After 300-hour operation, please change the oil, and flush the gear uint with suitable detergents.
Model: | WPO40 1:15 |
Others: | 50,60,70,80,100,120,135,147, 155,175,200,250 |
Color: | Blue/Green or on customer request |
Material: | HT200 |
Input power: | 0.33kw(Under the case of input speed 1500rpm) |
Ratio: | 15 |
Output torque: | 23N.m |
Bearing: | C&U, NSK, SKF or specified |
Seal: | CTY,CFW, SKF or specified |
Product features: | It adopts American technology with durability, stable transmission, large carrying capacity, low noise, compact structure, large transmission ratio and wide power. |
Application areas: | Textile printing and dyeing, rubber and plastic machinery, building materials machinery, environment protection machinery, lifting machinery, food packaging, metallurgical machinery, petrochemical industry, stage machinery and new energy field.
|
Lubricant: | Synthetic |
Warranty: | 1Year |
WP reducer model:
1.Single speed reducer: WPA, WPS, WPO, WPX,WPDA,WPDS,WPDO,WPDX,WPKA,WPKS,
WPDKA, WPDKS
2. Universal speed reducer:WPW, WPWA, WPWS, WPWO, WPWX, WPWT, WPWV, WPWD,
WPWDS, WPWDO, WPWDX, WPWDT, WPWDV, WPWK, WPWKA,
WPWKS, WPWKO, WPWKT, WPWKV, WPWDK, WPWDKA,
WPWDKO, WPWDKT, WPWDKV, WPDKZ WPDZ.
3.Double speed reducer: WPEA,WPEDA,WPES,WPEDS,WPEO,WPEDO,WPWEKO,WPWEDKO,WPWEK,
WPWEDK, WPEKA,WPEDKA,WPEKS,WPEDKS,WPWE,WPWED,WPEX,WPEDX
4. Multistage speed reducer: WPEEDA,WPEEO.

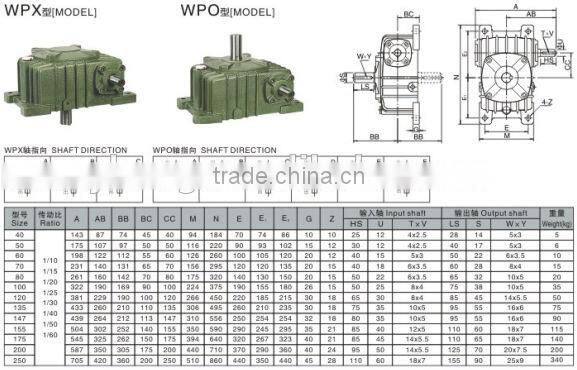

WP reducer Sizes: 40, 50, 60, 70, 80, 100, 120, 135, 155, 175, 200,250
Gearing arrangement is worm
Motor power is up to 33KW
Mounting position: foot mounted and flange mounted
Ratio Reduction: 1) single speed reducer: 10-60. 2) double speed reducer: 200-900
3) universal speed reducer: 10-60
Material: iron casting
Color: blue or green
Inner packing by carton, outer packing by wooden case.
It is possible to specialize the WP series reducer according to customer requirements.
(1) With excellent quality and Reasonable price
(2) Promise to delivery on time
(3) Safe, reliable, economical and durable
(4) Stable transmission, quiet operation
(5) High heat-radiating efficiency, high carrying ability
(6) Every product must be tested before sending
