RV Series Cast Iron NMRV130 Worm Gearbox
- 2000 Set / Sets per Month
- Ningbo Shanghai or Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Aluminum Worm Gear Reducer / Small Marine Gearbox
-
Made In China NMRV series High Reduction Ratio Low Speed Worm Gearbox
-
NMRV series Aluminium Alloy Right Angle Gearbox
-
UDL series Worm Ratio Reduction Gear Boxes
-
NMRV Series Small Worm Reducer Gear Box
-
RV series Mechanical Power Transmission Small Speed Reducer
Product Details
| Gearing Arrangement | Helical | Output Torque | 7.8-1195N.m | |
| Rated Power | 0.16~15KW | Input Speed | 1000r/min | |
| Output Speed | 14-185rpm | Place of Origin | Zhejiang, China | |
| Model Number | NMRV130 | Brand Name | YBANG |
Product Description

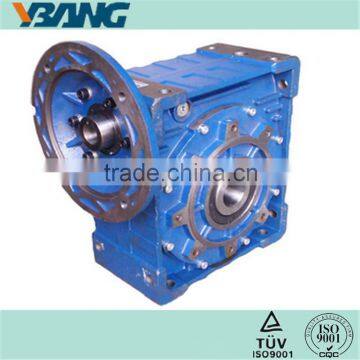

RV Series Cast Iron NMRV130 Worm Gearbox
OBANG produces YB..series gear motors with international advanced level, including YBR series helical gear motors, YBF parallel shaft helical gear motors, YBK series helical bevel gear motors, YBS series helial worm gear motors, YBH series helical gear units, YBB series bevel helical gear units, YBT series bevel steering gears, WP series helical worm speed reducer, NMRV speed reducers and other small parts.
NMRV series Worm Gearbox
RV Series Cast Iron Worm Gearbox
| RV series Worm Gear Box | |||||||
| For NMRV worm gear box, the housing is iron cast or Aluminium with high hardness. | |||||||
| The gears are made of high-quality alloy steel,like Zin Bronze, Albronze, are treated with surface hardening | |||||||
| The Bearing and seal can be replaced by other brand as your requirement. | |||||||
| When working, great load capacity, stable running, low noise with high efficiency. | |||||||
| Gear Box's Usage Field | |||||||
| 1 | Metallurgy | 11 | Agitator | ||||
| 2 | Mine | 12 | Rotary weeder | ||||
| 3 | Machine | 13 | Metallurgy | ||||
| 4 | Energy | 14 | Compressor | ||||
| 5 | Transmission | 15 | Petroleum industry | ||||
| 6 | Water Conserbancy | 16 | Air Compressor | ||||
| 7 | Tomacco | 17 | Crusher | ||||
| 8 | Medical | 18 | Materials | ||||
| 9 | Packing | 19 | Electronics | ||||
| 10 | Chemical industry | 20 | Textile indutry | ||||
| …… | …… | ||||||
| Power | 0.06kw | 0.09kw | 0.12kw | 0.18kw | 0.25kw | 0.37kw | 0.55kw |
| 0.75kw | 1.1kw | 1.5kw | 2.2kw | 3kw | 4kw | 5.5kw | |
| 7.5kw | 11kw | 15kw | |||||
| Torque | 2.6N.m-3000N.m | ||||||
| Ratio | 7.5-100, the double gearbox is more | ||||||
| Color | Blue, Silver or as customers' need | ||||||
| Material | Iron or Aluminium | ||||||
| Packing | Carton with Plywood Case or as clients' requirement | ||||||
| Type | RV025 | RV030 | RV040 | RV050 | RV063 | RV075 | RV090 |
| Weight | 0.7kg | 1.3kg | 2.3kg | 3.5kg | 6.2kg | 9kg | 13kg |
| Type | RV110 | RV130 | RV150 | ||||
| Weight | 35kg | 60kg | 84kg | ||||

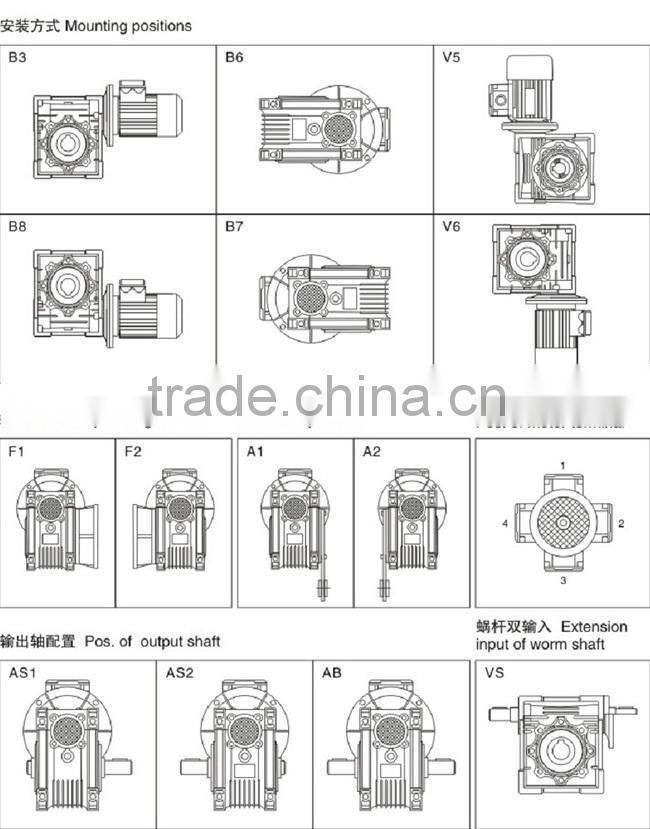

| Mounting Methods | Foot Installation | Flange Installation | |||||
| For various mortor or double input/output shafts can be equipped | |||||||
(1) With excellent quality
(2) Reasonable price
(3) Promise to delivery on time
(4) Large output torque
(5) Safe, reliable, economical and durable
(6) Stable transmission, quiet operation
(7) High heat-radiating efficiency, high carrying ability
(8) Certificate of quality: ISO9001:2008
(9) Every product must be tested before sending
(10)Made of high-quality aluminum alloy, light weight and non-rusting
(11)Large output torque.
(12) Smooth running and low noise.
(13) High radiating efficiency.
(14) Good-looking appearance, durable service life and small volume.
(15) Suitable for Omni bearing installation.
