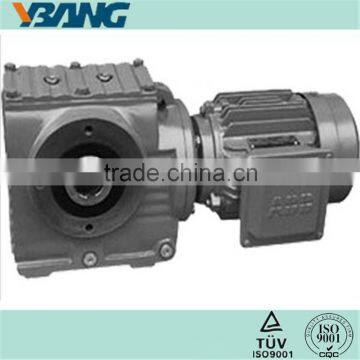

SEW Standard S series Right Angle Speed Reduction Gearbox
- Ningbo.Shanghai or Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
F Series Parallel Shaft Helical Gear Units / Gear Box
-
Right Angle F67 series China Gearbox Cyclo Speed Reducer
-
R series helical gear speed reducer with electric motor
-
S Series Flange Mounted Helical Worm Gear Reducer
-
R series Helical Gear Reduction gearbox With Motor
-
SEW Type K series Right Angle Helical Gear Reducer Motor
Product Details
| Gearing Arrangement | Helical | Output Torque | 11-4900N.m | |
| Rated Power | 0.12-22kw | Input Speed | 45-240rpm | |
| Output Speed | 0.12-397rpm | Place of Origin | Zhejiang, China | |
| Model Number | YBSA57 | Brand Name | YBANG |
Product Description

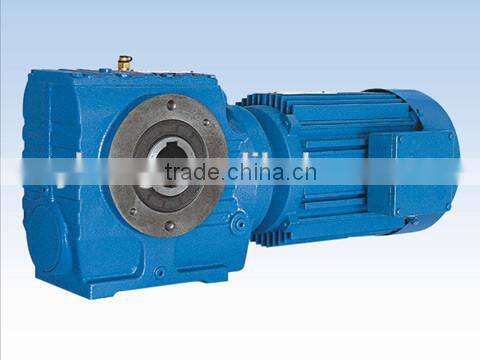

SEW Standard S series Right Angle Speed Reduction Gearbox
OBANG produces YB..series gear motors with international advanced level, including YBR series helical gear motors, YBF parallel shaft helical gear motors, YBK series helical bevel gear motors, YBS series helial worm gear motors, YBH series helical gear units, YBB series bevel helical gear units, YBT series bevel steering gears, WP series helical worm speed reducer, NMRV speed reducers and other small parts.

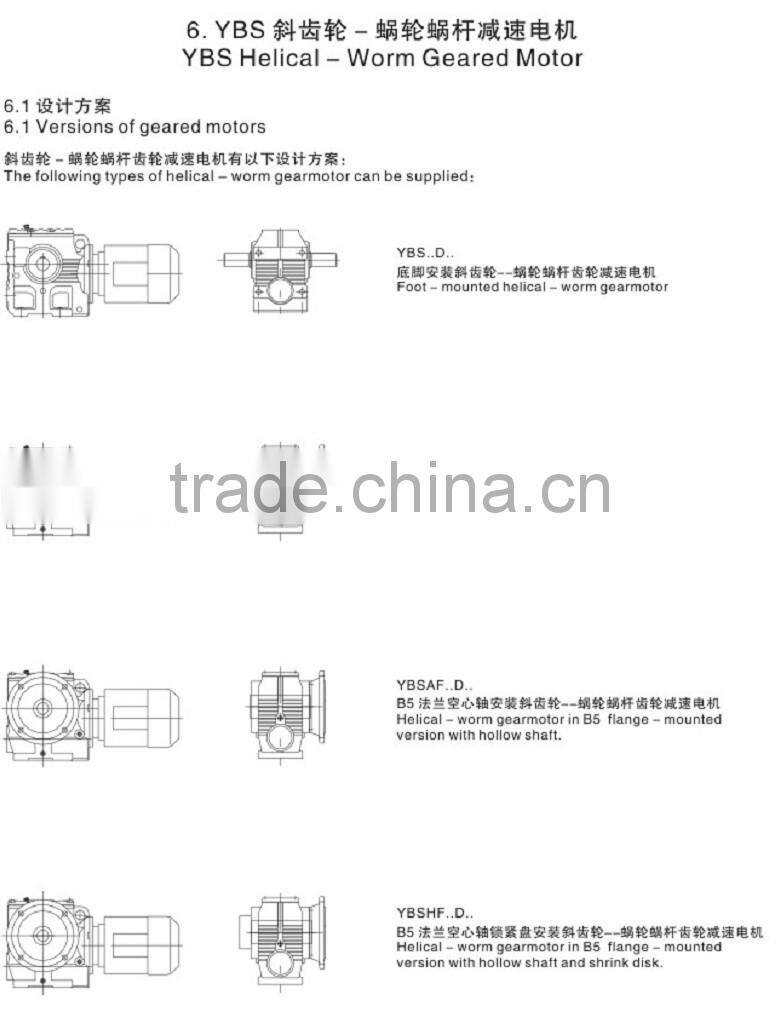

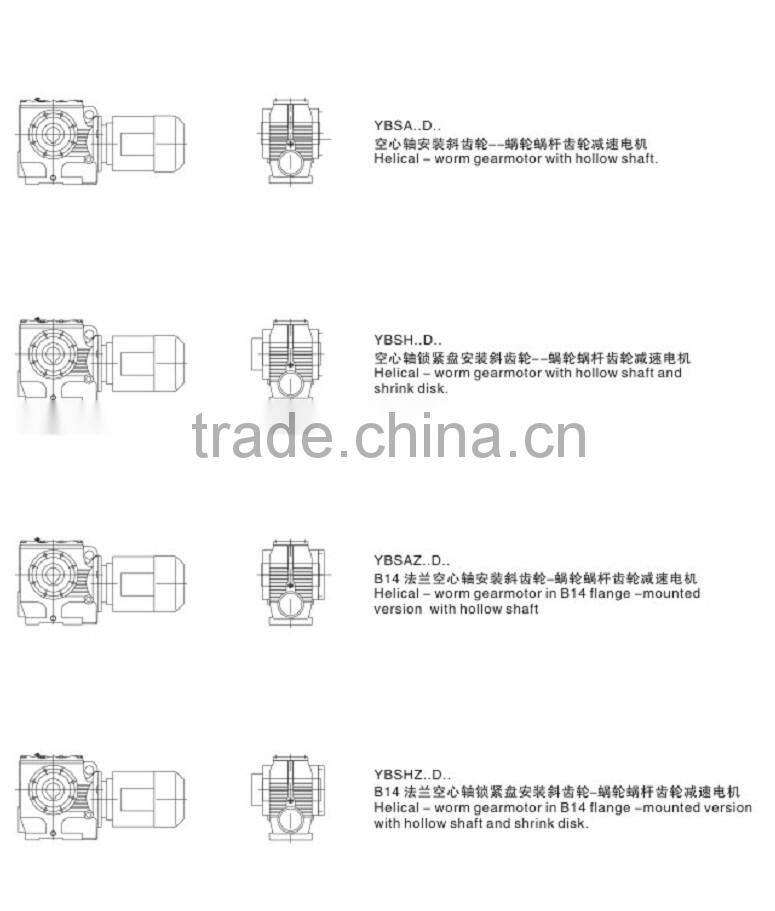

YBS series Helical Worm Gear Motors
Right Angle Speed Reduction Gearbox
| YBS series Foot mounted Helical-Bevel Gear Motors | |||||||
| Products follow the philosophy of modularization and optimization; adopt finite element | |||||||
| analysis method and unique lower noise technology in designing gear, to insure advanced | |||||||
| design. The classification of ratio is so accurate it has millions of combinations to meet varied demand of customers. The process from the material selection to manufacturing is strictly | |||||||
| controlled ——box housing is beautiful and rigid casted by precision control, gear is endurable | |||||||
| by carburizing. Take the flexible manufacturing control (FMC) in the manufacturing to realize | |||||||
| the high precision level and maintenance-free of products. | |||||||
| YBSA57 | |||||||
| Gear Box's Usage Field | Gear Box's Usage | ||||||
| 1 | Metallurgy | 1 | Agitator | ||||
| 2 | Mine | 2 | Blast fan | ||||
| 3 | Machine | 3 | Hoister | ||||
| 4 | Energy | 4 | Compressor | ||||
| 5 | Transportation | 5 | Petroleum industry | ||||
| 6 | Water Conserbancy | 6 | Air Compressor | ||||
| 7 | Tomacco | 7 | Crusher | ||||
| 8 | Pharmacy | 8 | Plastic extruder | ||||
| 9 | Printing Package | 9 | Conveyer | ||||
| 10 | Chemical industry | 10 | Textile indutry | ||||
| …… | …… | ||||||
| Power | 0.12kw | 0.18kw | 0.25kw | 0.37kw | 0.55kw | 0.75kw | 1.1kw |
| 1.5kw | 2.2kw | 3kw | 4kw | 5.5kw | 7.5kw | 11kw | |
| 15kw | 18.5kw | 22kw | |||||
| Torque | 11-4900N.m | ||||||
| Output speed | 0.12-397rpm | ||||||
| Color | Blue,Silver or as clients' requirement | ||||||
| Material | HT250 | ||||||
| Warranty: | 1 year | ||||||
| Packing | Plywood Carton Box Or Wooden Cases | ||||||
(1) With excellent quality
(2) Reasonable price
(3) Promise to delivery on time
(4) Large output torque
(5) Safe, reliable, economical and durable
(6) Stable transmission, quiet operation
(7) High heat-radiating efficiency, high carrying ability
(8) Certificate of quality: ISO9001:2008
(9) Every product must be tested before sending
(10)Made of high-quality aluminum alloy, light weight and non-rusting
(11)Large output torque.
(12) Smooth running and low noise.
(13) High radiating efficiency.
(14) Good-looking appearance, durable service life and small volume.
(15) Suitable for Omni bearing installation.
Welcome to us for more details and parameters
If you have any questions, please feel free to contact me.
Best regards,
Kayla
