Product Details
| Place of Origin | Zhejiang, China | Brand Name | YBANG | |
| Model Number | YBR47 | Gearing Arrangement | Helical | |
| Output Torque | 1.4-23200N.m | Rated Power | 0.12-160kw | |
| Input Speed | 1500rpm | Output Speed | 0.06-1090rpm |
Product Description

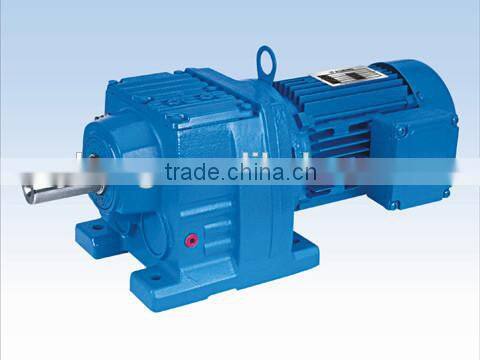

R47 series Strong Power Automatic Transmission Gearbox
OBANG produces YB..series gear motors with international advanced level, including YBR series helical gear motors, YBF parallel shaft helical gear motors, YBK series helical bevel gear motors, YBS series helial worm gear motors, YBH series helical gear units, YBB series bevel helical gear units, YBT series bevel steering gears, WP series helical worm speed reducer, NMRV speed reducers and other small parts.
YBR series Reduction Helical Gear Motors
Automatic Transmission Gearbox

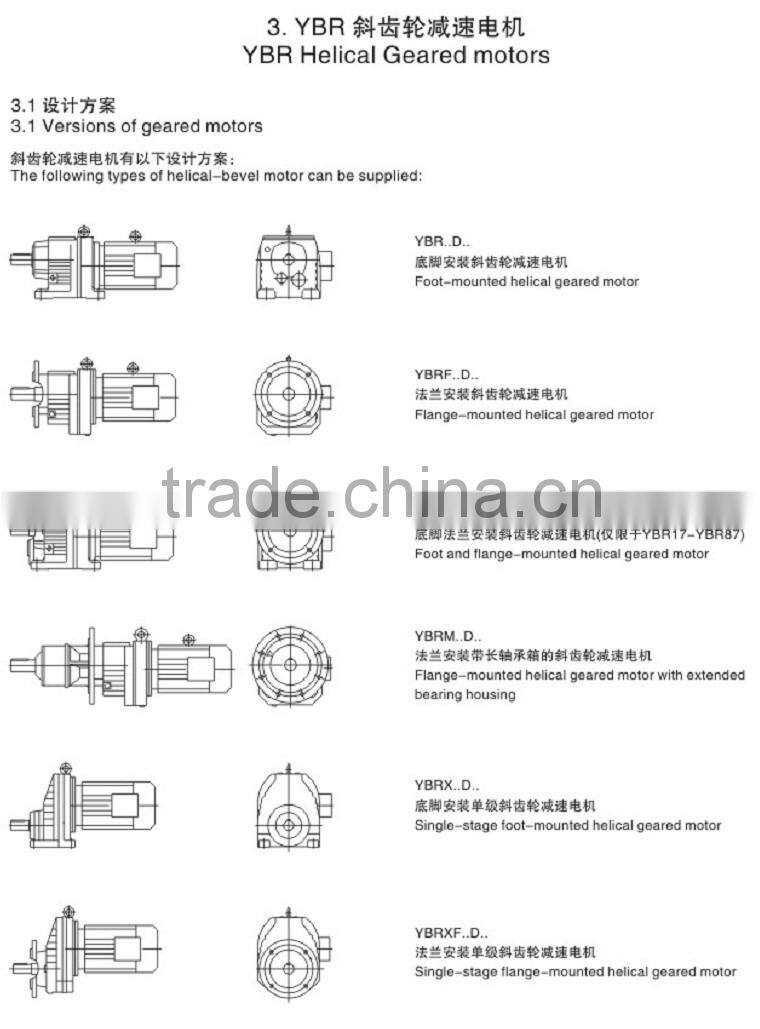

Type: | YBR series Foot-mounted Helical Gear Motors |
Model: | YBR47 |
Color: | Blue/Sliver or on customer request |
Material: | HT250 |
Input power: | 0.12-160kw |
Output torque: | 1.4-23200N.m |
Output speed: | 0.06-1090rpm |
Bearing: | C&U Bearing,NSK,SKF or on customer's request |
Seal: | SKF,CTY,CFW or on customer's request |
Lubricant: | Mineral |
Warranty: | 1Year |
Product features: YBR series products follow the philosophy of modularization and optimization; adopt finite element analysis method and unique lower noise technology in designing gear, to insure advanced design. The classification of ratio is so accurate it has millions of combinations to meet varied demand of customers. The process from the material selection to manufacturing is strictly controlled ——box housing is beautiful and rigid casted by precision control, gear is endurable by carburizing. Take the flexible manufacturing control (FMC) in the manufacturing to realize the high precision level and maintenance-free of products.
Application areas: Rubber & plastic machine, environmental protection machine, metallurgical machine, food stuff machine, stage machine, soldering machine, road construction machine, entertainment machine, packing machine, building machine, automobile industry and conveyors industry.
(1) With excellent quality
(2) Reasonable price
(3) Promise to delivery on time
(4) Large output torque
(5) Safe, reliable, economical and durable
(6) Stable transmission, quiet operation
(7) High heat-radiating efficiency, high carrying ability
(8) Certificate of quality: ISO9001:2008
(9) Every product must be tested before sending
(10)Made of high-quality aluminum alloy, light weight and non-rusting
(11)Large output torque.
(12) Smooth running and low noise.
(13) High radiating efficiency.
(14) Good-looking appearance, durable service life and small volume.
(15) Suitable for Omni bearing installation.
