Home > Products > Slitting Machine > FQ-A Vertical Slitting Rewinding Machine,paper Slitting Machine,slitting Machine Price
FQ-A Vertical Slitting Rewinding Machine,paper Slitting Machine,slitting Machine Price
- Ningbo
- T/T
You May Like
Product Details
| Condition | New | Application | Food, Beverage, Commodity, Medical, Chemical, Apparel, Textiles | |
| Packaging Type | Film, Case | Packaging Material | Plastic, Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/380V | Power | less than 3.5kw | |
| Place of Origin | Zhejiang, China | Brand Name | Huabo | |
| Model Number | FQ-A | Weight | 1500KG | |
| Dimension(L*W*H) | 2400*1110*1400mm | Certification | CE/ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
slitting rewinding machine1. Touch screen control
2. Good quality
3. Factory price

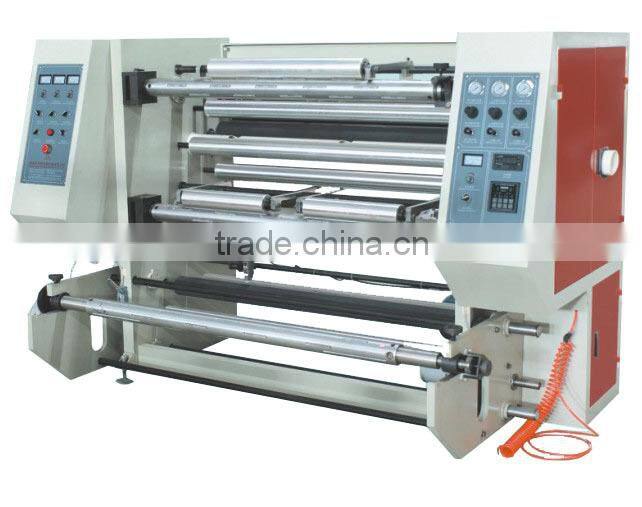

Name: FQ-A Vertical slitting rewinding machine,paper slitting machine,slitting machine price
Characteristic
This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper etc. and can cut edge, separate and cut material according to different requirements during production.
1 The machine is kind of vertical separating and cutting machine. Rolling and releasing can be in front of or at the back of machine.
2 Adopts independent master control screen, make operation more flexible and even easier.
3 Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent material.
4 Releasing tension adopts magnetic powder clutch control.
5 Rolling adopt magnetic clutch control.
6 Counting meter of material moving length automatically.
7 The machine has double air cylinders rewinding system.
Main technical parameters
Type | FQ-A 700 | FQ-A 1100 | FQ-A1300 |
Max.Width of Mother Roll | 700mm | 1100mm | 1300mm |
MAX.Diameter of Mother Roll | Φ600mm | Φ600mm | Φ600mm |
Width of Final Roll | 30-600mm | 30-600mm | 30-600mm |
Slitting and Rewinging Speed | 5-160m/min | 5-160m/min | 5-160m/min |
Tolerance of EPC | <±0.5mm | <±0.5mm | <±0.5mm |
Total Power | 2.7kw | 3.5kw | 3.5kw |
Weight of Machine | 1200kg | 1500kg | 1800kg |
Overall Dimension | 2000×1110×1400mm | 2400×1110×1400mm | 2600×1110×1400mm |
Samples
Workshop
Delivery
The Certificates
Our Company Culture
The Payment Term
FQ-A Vertical slitting rewinding machine,paper slitting machine,slitting machine price
