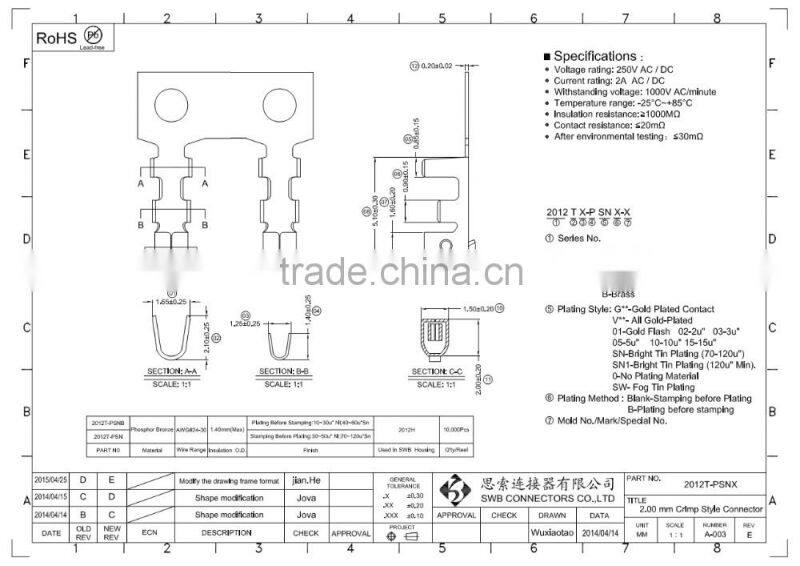

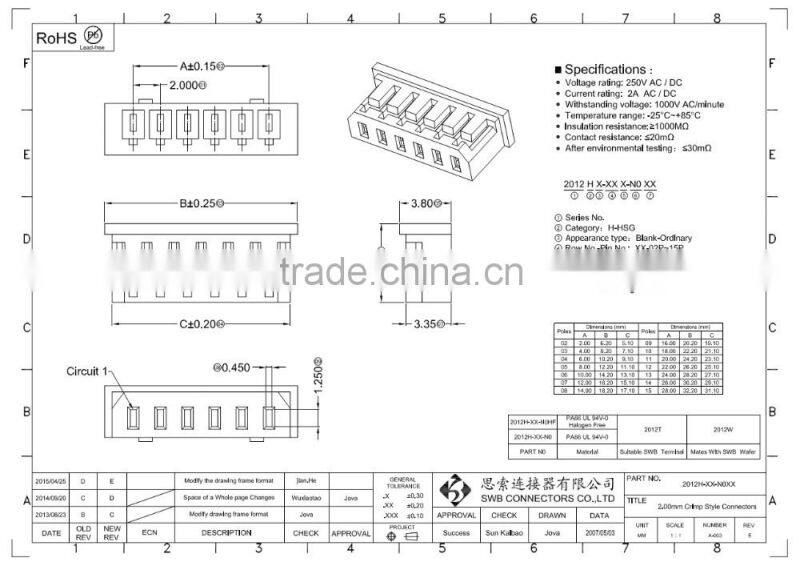

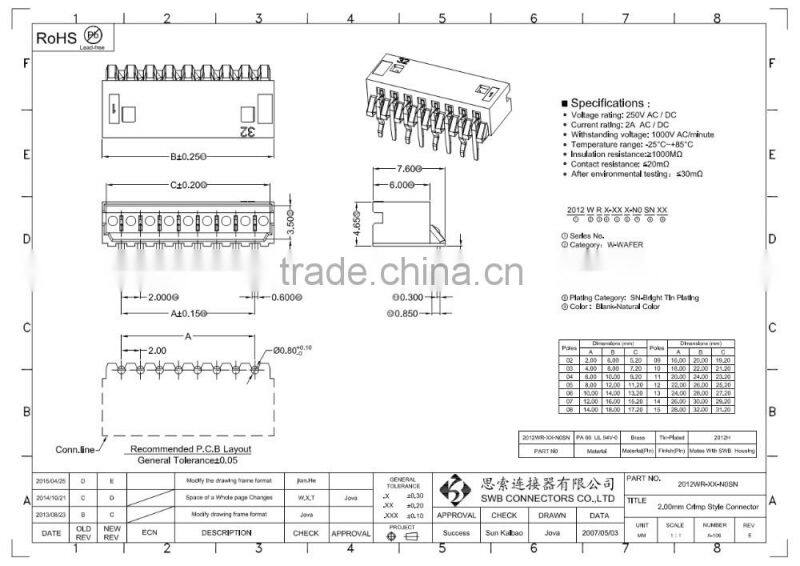

2.00 MM Pitch Wire to Board Electrical ConnectorsMolex 51004

SPECIFICATIONS:

Voltage Rated: 250V AC/DC

Current Rated: 2A AC/DC Max

Withstand voltage: 1000V AC/minute

Insulation resistance: 1000MΩ min

Contact resistance: 20 MΩ max

Operation temperature: -25℃~+85°C

Wire Range:AWG#24-30

 1 Packaging: Useing strong bags/boxes/cartons for package to reduce the damage during the shipments. Tape and reel packing, Clamshell packing,Pallet packing etc are available.

2 Delivery Method: by sea, by air, or express such as DHL/TNT/UPS etc.

3 Delivery Time: normally 7-14days, could be negotiable when order is urgent.

1 fully-Inspection - Products are 100% inspected before shipment
2 In case of quality discrepancy or quantity discrepancy, we will do replenishment immediately, or other better methods after negotiation, to make sure our customers could be satisfied well.
3 Solution - Find the problems, make an effective improvement, and impose more strict quality control.

4 Long term after sell service to ensure customer is satisfied.

Q:How to place a fast connector order?

A:The following tips will save your time.

• The name of the product
• Pictures and/or the data sheet for the product
• The number of rows
• The number of pins per row
• The pitch of the connector
• The height of the insulator
• The color of the insulator
• The type of material
• Any Additional Demands
•

• Ask your engineer for details

  Are you a purchaser that doesn’t work directly with the product? To place a fast connector order, you can consult the project engineer to gather these information before contacting us.
