FU YUAN EM Serials 19'' Standard Glass Door Network Cabinet FY-EMG

Specifications

FU YUAN EM serials 19'' standard glass door network cabinet FY-EMG

Specification:

1> Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92 standard, compatible with 19 inch international standard, metric system and ETSI standard.

2> Reliable structure, static loading capacity: 500KG

3> Adjustable feet and castors are available, moving conveniently and fixing reliable.

4> Baying together easily, quick efficiently and firmly.

5> International popular 5mm thickness of tempered glass front door with MS818 handle lock, steel rear door with small round lock.

6> Optional cable entry on top cover and bottom panel, front & rear door and side panels can be removed facility, the bottom has the function of ventilation and rat-proof funtion.

7> Standrd accessories include Fans, PDU and shelves, optional also welcomed!

8> Optional opening hole and varies specification upon customers' special requirements.

Surface finish:  Degreasing, Pickling, Phosphating, Powder coating.

Material  : High quality SPCC cold rolled steel

Thickness :Mounting profile: 2.0mm, others: 1.2mm to 1.5mm

Color: RAL 9004 Black or RAL 7035 Grey, customization also welcomed.

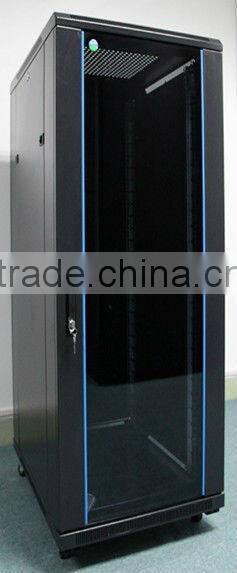

Product images:

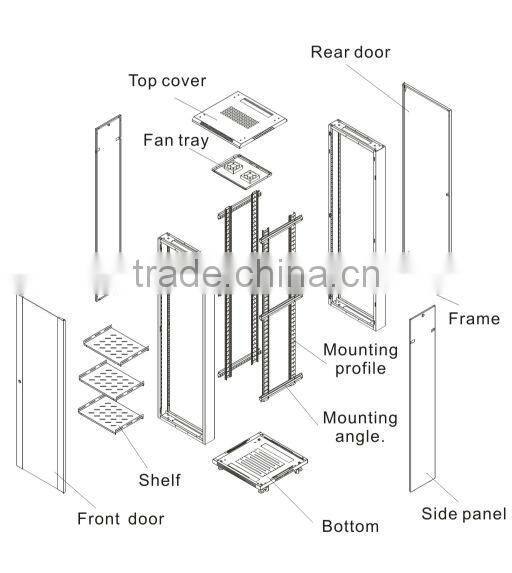

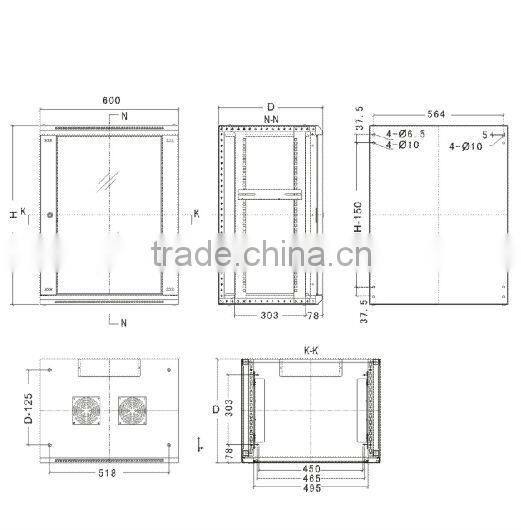

Product design drawings:

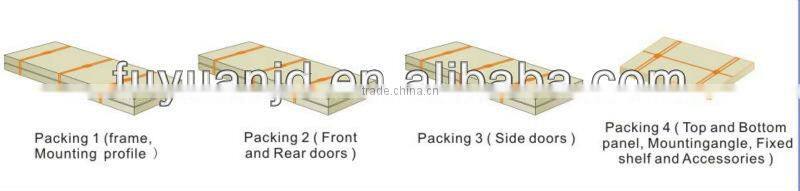

 Packing details:

Factory equipments:

FU YUAN factory view:

Certification:
