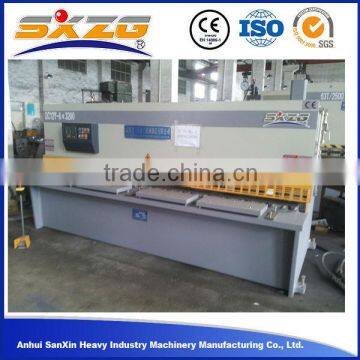

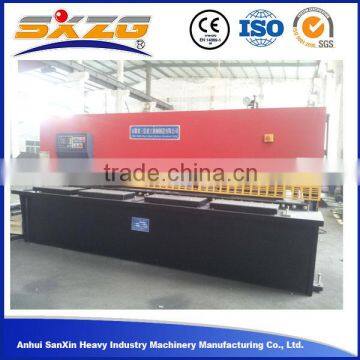

Factory Direct Sale E21 NC Control Hydraulic Cut Machine for Shearing 6mm Plate

Sheet plate structure is adopted.with hydraulic transmission and accumulator return,typical of an easy operation,reliableperformance,and nice ted with digital display system.

Sheet plate structure is adopted.with hydraulic transmission and accumulator return,typical of an easy operation,reliable performance,and nice ted with digital display system.

Hydraulic driven and returning stroke is activated by the nitrogen cylinder smoothly and promptly.
The clearance of blades could be adjusted by hand wheel, the value adjusted is display on the indicating plate.

Rolling material support ball is provided,to minimize fish tail with sheet bar and to reduce frictional resistance.

The machine tool is provided with the functions of digital display,soft limit,as well as prompt for one-way positioning clearance,and automatic counting for shearing.

The machine uses protection fence for safe operation.

Specification:

Machine Model: QC12Y-6X3200

Max cutting thickness:6.0mm

Max cutting length:3200mm

Throat depth:100mm

Cutting speed:15times/min

Cutting angle:1.5°

X Axis back gauge range:500mm(optional)

Motor power:7.5KW

External dimensions:390x165x180CM

Machine net weight:6.2Ton

E21 NC Controller feature:

Back gauge and block control Intelligent positioning

Stock counter

Program memory up to 40 programs

Up to 25 steps per program

One side positioning Retract function

One key backup/restore of parameters

Chinese/English   Mm/inch
