Factory Direct Sale E21 NC Control Hydraulic Swing Beam Steel Plate Sheet Shear Machine

Sheet plate structure is adopted.with hydraulic transmission and accumulator return,typical of an easy operation,reliableperformance,and nice ted with digital display system.

Sheet plate structure is adopted.with hydraulic transmission and accumulator return,typical of an easy operation,reliable performance,and nice ted with digital display system.

Hydraulic driven and returning stroke is activated by the nitrogen cylinder smoothly and promptly.
The clearance of blades could be adjusted by hand wheel, the value adjusted is display on the indicating plate.

Rolling material support ball is provided,to minimize fish tail with sheet bar and to reduce frictional resistance.

The machine tool is provided with the functions of digital display,soft limit,as well as prompt for one-way positioning clearance,and automatic counting for shearing.

The machine uses protection fence for safe operation.

Specification:

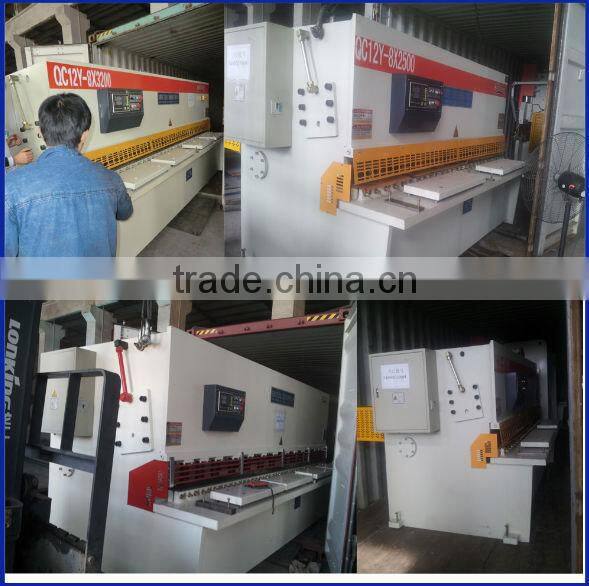

Machine Model: QC12Y-12X3200

Max cutting thickness:12.0mm

Max cutting length:3200mm

Throat depth:120mm

Cutting speed:10times/min

Cutting angle:2.5°

X Axis back gauge range:500mm(optional)

Motor power:18.5KW

External dimensions:390x205x215CM

Machine net weight:10.0Ton

E21 NC Controller feature:

Back gauge and block control Intelligent positioning

Stock counter

Program memory up to 40 programs

Up to 25 steps per program

One side positioning Retract function

One key backup/restore of parameters

Chinese/English   Mm/inch

Video:http://youtu.be/ckCmmZVFQX0

-Q:How about your machine quality?

-A: SXZG is a mature brand in China, through our 9 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute to about 50 countries where there are metal plate industry ,there are Brilliant machines.And where there are our machines,we have good reputation and terminal user satisfaction.

-Q:Whether the machine price can be more discount?

-A1: Domestic Company always provide high quality machine,as we know that oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough quality standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

-A2: We sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
