Corrosion Resistance Nickel Alloy UNS N02200

corrosion resistance nickel alloy UNS N02200

Nickel Alloy 200

Common Trade Names: Nickel 200, Nickel 99.2, Alloy 200

Nickel 200 (UNS N02200/W.Nr. 2.4060 & 2.4066) is commercially pure (99.6%) wrought nickel. It has good mechanical properties and excellent resistance to many corrosive environments. Other useful features of the alloy are its magnetic and magnetostrictive properties, high thermal and electrical conductivities, low gas content and low vapor pressure.

The corrosion resistance of Nickel 200 makes it particularly useful for maintaining product purity in the handling of foods, synthetic fibers, and caustic alkalies; and also in structural applications where resistance to corrosion is a prime consideration.

Other applications include chemical shipping drums, electrical and electronic parts, aerospace and missile components.

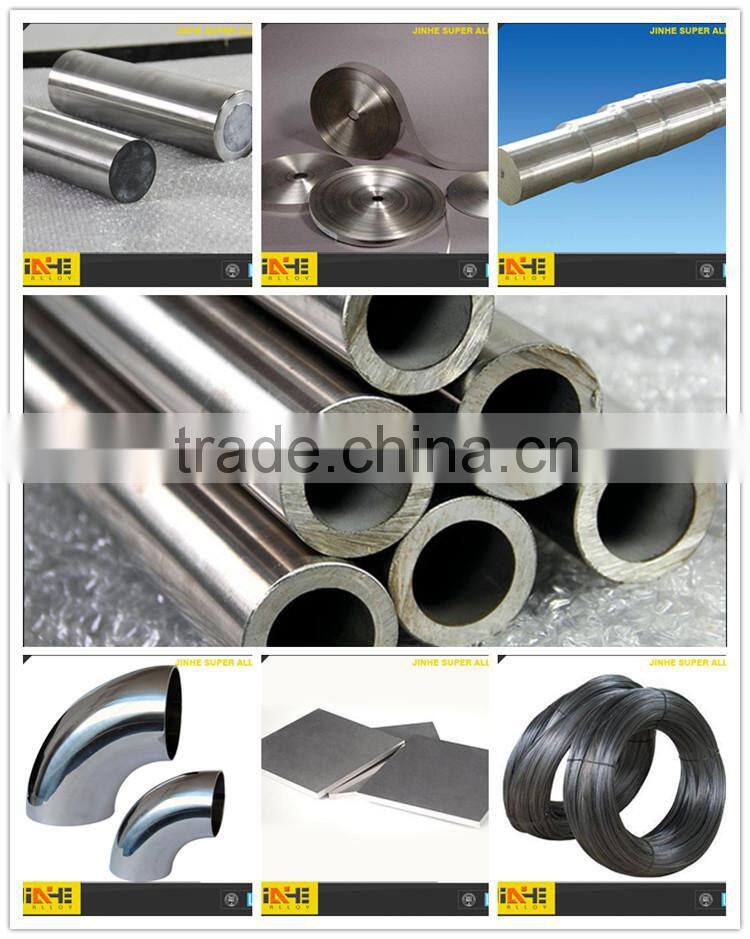

Available Product Forms:
Rod, bar, forgings, wire,plate, sheet, strip, pipe, tube, pipe fittings.

Specifications

Specifications for Nickel 200 include the following:

Bar,Rod,Wire, & Forgings: ASTM B564,ASTM B160.

Plate, Sheet & Strip: ASTM B162.

Pipe and Tube: ASTM B161, ASTM B163.

Fittings: ASTM B366 WPN

Chemical Composition

Nickel (plus cobalt) ......................................................99.0 min.
Copper........................................................................0.25 max.
Iron..............................................................................0.40 max.
Manganese .................................................................0.35 max.
Carbon........................................................................0.15 max.
Silicon .........................................................................0.35 max.
Sulfur ..........................................................................0.01 max

Chemical composition:

mechanical property:

specifications:

we are professional manifacturer focus on corrosion resistance nickel alloy UNS N02200 ,any question pls feel free to send us inquires.
