Aluminum polyester foil for cable shield
- Shanghai/Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Tianhong | |
| Model Number | ICP0004 | Type | Insulation Tape | |
| Material | Composite Polymer | Application | High Temperature | |
| Rated Voltage | Customer requirements | Tensile Strength | ≥90 Mpa |
Product Description
Specifications
1Aluminum polyester foil used in coaxial cable2.For telephone lines
3.Have various product series
4.Supply ROHS
1.Application
a.Aluminum polyester filml (RFI)shielding material.
b.Widely used in wires and cables like CATV cables, LAN cables, shielding layer of many other kinds cables, and ventilation ducts, etc.
2.Dimensions
a.Uses soft aluminum foil and polyester film,then compound them,after their ripening,cut them into rolls.
b.Accept orders of foils with different thickness, length and width.
c..Have two series:AL+PET and AL+PET+AL
Name | Aluminium Polyester Foil(AL+PET) |
Thickness | 20u-150u |
Width | 5mm-700mm |
ID | 38mm or 53mm or 76mm |
OD | 250mm-650mm |
Color | Silver,Blue,Golden |
Packaging | 1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet 2.Inner-plastic bag,Outside plywood wooden box |
Name | Aluminium Polyester Foil(AL+PET+AL) |
Thickness | 30u-50u |
Width | 5mm-700mm |
ID | 38mm or 53mm or 76mm |
OD | 250mm-650mm |
Color | Silver,Blue,Golden |
Packaging | 1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet 2.Inner-plastic bag,Outside plywood wooden box |
3.Test report and test machine
| No. | Name | Width(mm) | Thickness (mm) | Tension (N) | Tensile strength (MPa) | Elongation at break (%) |
| 1 | Aluminum polyester foil | 10.000 | 0.027 | 30.96 | 114.683 | 51.169 |
| 2 | Aluminum polyester foil | 12.000 | 0.027 | 47.39 | 146.267 | 83.859 |
| 3 | Aluminum polyester foil | 15.000 | 0.027 | 59.53 | 146.979 | 78.151 |
4.Production line: Lamination & Cutting
5.Product pictures

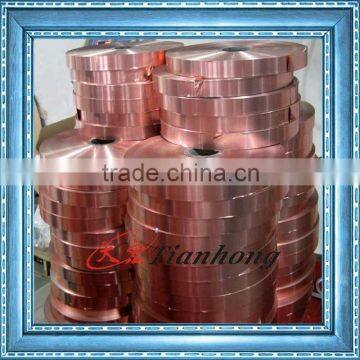

Double side Aluminum polyester foil------Copper color
Double side Aluminum polyester foil------Silver color
Single side Aluminum polyester foil -Copper color
Single side Aluminum polyester foil -Silver color
Single side Aluminum polyester foil -Blue color
6.Packaging photos
a.Inner-plastic bag,Outside-carton,Then put on a plywood pallet
b.Inner-plastic bag,Outside plywood wooden box.
7.Warehouse
8.Application to Cables & Flexible Ducts
Cables
Flexible Ducts
9.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect
10.Sample: We are manufacturer,We supply free sample,But please pay express fee.
11.Contact:Please feel free to contact with me.
Mobile:86-15168349992
TEL:86-571-6106 1089
FAX:86-571-6381 0799
