Fiberglass Reinforced Polypropylene Filter

Specifications

 Fiberglass Reinforced Polypropylene Filter

Brief Introduction:

This filter  has a corrosion resistant injection molded filter tank featuring superior strength and reliability.

The cartridge assembly uses four easy to clean, non-woven, polyester cartridges. Each filter is supplied with

a bulkhead union set for easy installation .

Featured Highlights :

•  NSF listed
•  Superior strength
•  Large filter area for increased  dirt capacity
•  1-1/2 in., 100% drain clean-out port
•  Continuous High Flow™ internal air relief *
•  Base and plumbing kits now available

•  Injection molded tank
•  Balanced hydraulic flow
•  Tension Control™ clamp
•  100% factory tested
•  Black bulkhead unions
•  High Flow manual air relief valve

Ordering Information :

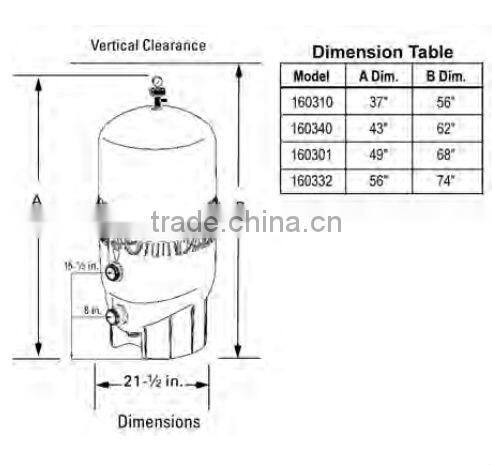

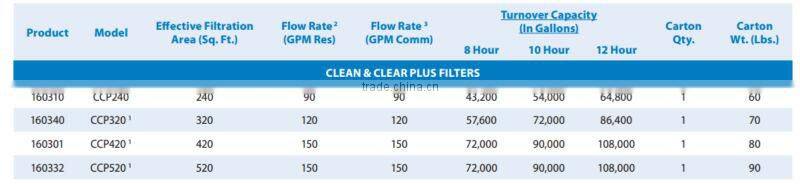

Dimensions and Performance :

Note:

1. Actual system flow will depend on plumbing size and other system components .

2. Pentair Pool Products does not recommend flow rates above 150 GPM .

3. Integrated continuous High Flow internal air relief is operational only when there is unobstructed flow in the
    circulating system.

4. Operating Limits – maximum continual operating pressure of 50 PSL. Pool /Spa(bather) applications,  maximum operating water temperature (internal filter) 104°F (40°C).
