Fiber Glass Top Mount Sand Filter
- Guangzhou/Shenzhen/Hong Kong
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Other, filter | |
| Medium Material | Other, quartz sand | Place of Origin | China | |
| Brand Name | Hydroswim | Model Number | F/HS/T series |
Product Description
Specifications
fiberglass top mount sand filter6-position valve
UV resistance surface
resistance to chemical corrosion
easy to use

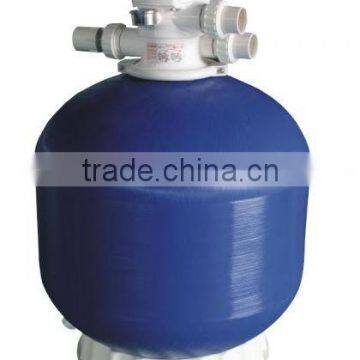

Fiber Glass Top Mount Sand Filter
Feature and the advantage:
1.Materials used are dependable and are suitable for all the weather performance.

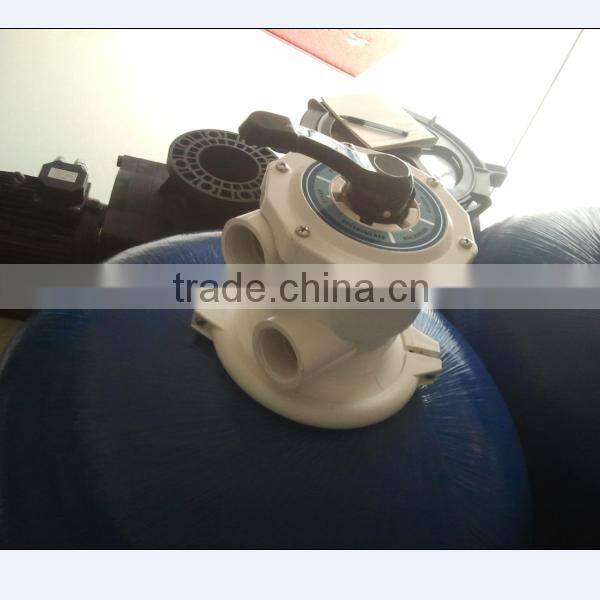

2.Easy-to-use multi port valve let us select any of the valve/ filter operation with a simple lever-action.
3.UV resistance surface allows the fiber to work under direct sunlight.
Application:
Suitable for filtering pools, aquariums, water parks and industrial wastewater treatment equipment .
Technical Information:

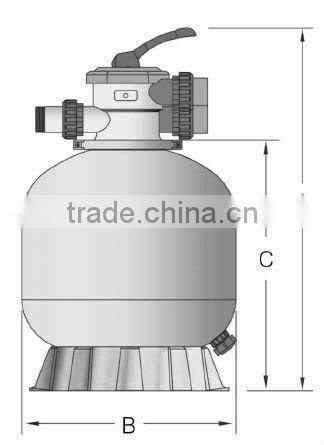

Model No. | TANK Dia. B(mm) | Height A(mm) | Valve Height C(mm)
| Valve Port Size (mm) | Filter Area (m2) | Silica Sand (kg) | Design Flow (lpm) | Gross Weight (kg) | Package Sizes (cm) | Package Type (material) |
350 | 350 | 680 | 450 | 50
| 0.10 | 20 | 80 | 12.0 | 36*36*70 | Master Carton
|
400 | 400 | 740 | 510 | 0.13 | 30 | 105 | 16.0 | 48*48*78 | ||
450 | 450 | 800 | 570 | 0.16 | 40 | 133 | 16.5 | 49*49*83 | ||
550 | 550 | 840 | 610 | 0.22 | 85 | 192 | 21.1 | 57*57*71 | ||
650 | 650 | 960 | 730 | 0.30 | 155 | 270 | 24.3 | 68*68*83 | ||
700 | 700 | 1025 | 795 | 0.40 | 185 | 320 | 33.0 | 73*73*86 | ||
800 | 800 | 1200 | 930 | 63 | 0.50 | 210 | 420 | 41.5 | 84*84*96 | |
900 | 900 | 1300 | 1030 | 0.64 | 310 | 500 | 52.3 | 94*94*108 | ||
1000 | 100 | 1400 | 1130 | 0.79 | 410 | 550 | 95.0 | 107*107*125 | Wooden Crate | |
1100 | 1100 | 1480 | 1210 | 0.98 | 460 | 630 | 115.0 | 117*117*135 | ||
1200 | 1200 | 1600 | 1330 | 1.13 | 560 | 700 | 124.0 | 127*127*144 | Wooden Pallet | |
1400 | 1400 | 1850 | 1580 | 1.54 | 900 | 950 | 182.5 | 145*145*160 |
Remark:
- Payment: 70% T/T prepaid,Western Union.
- Terms of payment:All payment are before shipment .
- Price will be adjusted if USD:RMB rate varies by +/- 2%. Freight not included .
- Offer validity: one month
We Provide high-quality service for:
1,Swimming pool equipment wholesalers.
2,Retailers and online shops.we have shops in Chengdu,Shanghai,Beijing and Guangzhou,We supply the high quality and low price,and best service.
3,OEM-The custom-made pumps are available.Upon customer’s idea,drawings,photos etc.more detail.The length of time depend on the procedures .
Addr: Fl.2, No.166, Gangdong Rd., Dashi street, Panyu District, Guangzhou.China.
Tel: +86 20 34796181 Fax: +86 20 34796171
Exhibitions:
pany shows:
pany certificate:
3.warehouse
Contact Us
- Guangzhou Chuangwen Pool & Sports Equipment Co., Ltd.
- Contact namekate cai Chat Now
- Phone86-20-34796181-602
- AddressFloor 2, No.166, Gangdong Road, Dashi Town, Panyu District, Guangzhou, Guangdong
