Steel Cold Forming Equipments, Floor Decking Concrete Tile Roll Forming Machine
- tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Steel Cold Forming Equipments, Galvanized Steel Panel Floor Deck Making Machine
-
Steel Cold Forming Equipments, Embossment Steel Floor Decking Forming Machinery
-
Steel Cold Forming Equipments, Automatic Floor Deck Color Steel Rolling Machine
-
Steel Cold Forming Equipments, Steel Floor Decking Sheet Manufacturing Machine
-
Steel Cold Forming Equipments, Roll Forming Machine for Floor Deck Roll Former
-
Steel Cold Forming Equipments, High Quality Metal Deck Flooring Making Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Floor | |
| Production Capacity | as request | Place of Origin | Hebei, China | |
| Brand Name | Xingbo | Model Number | FX-600 | |
| Power(W) | 11KW | Voltage | 380v | |
| Dimension(L*W*H) | as design | Weight | about 8T | |
| Certification | BV CE ISO | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

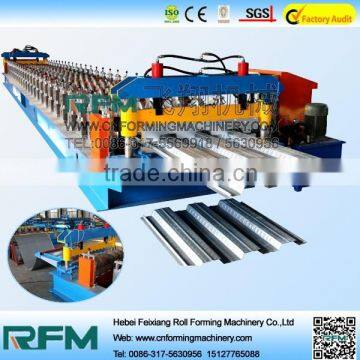

Steel cold forming equipments,floor decking concrete tile roll forming machine
Advantages:
floor decking concrete tile roll forming machine
• Easy operate with high production capacity
• Carriage with hardened gear or chain
• Magnetic linear encoder for direct measuring
• Precision length and width control
• Motor brake for secure positioning
1.Material and Profile :
floor decking concrete tile roll forming machine
| Type | GI,PPGI | THICKNESS O.6-1.5MM |
| Covered Width | 600mm | margin of error ±2mm |
| Wave Height | 50mm | margin of error ±1mm |
| Pitch Width | 200mm | margin of error ±1mm |
2.Components :
| Decoiler | 1set | Manual or Full-Automatic,5-15T |
| Main Forming Device | 1set | With motor power 15kw,column or middle plate style |
| Control System | 1set | 5.7inch touch screen ,delta plc |
| Cutting Device | 1set | SKD11 Cutting blade with 5.5kw hydraulic pump |
| Output Table | 1pcs | as request |
3.Detail picture :
floor decking concrete tile roll forming machine
4.Note for use and maintenance
1),before use,you must check whether all connections are steady,whether bolts and nuts are tightinstallation.when start the machine,you must make sure there are enough lubrication oil in the case.
2),when start the machine commissioning,the machine should run idle,then check it carefully such as noise,vibration and whether the oil window works smoothly,whether every parts movement coordination.
3),You must cut off power when install the mould,move the motor belt and big gear by hand,turn the workbench and make sure the slide up to the highest point.
View of HEBEI FEIXIANG:
HEBEI FEIXIANG ROLL FORMING MACHINERY CO.,LTD :
a. Two decades professional cold steel forming equipments manufacturer
b. One comapny with two factory,about 30000 square meter,more than 100 employees
c. National GB/T,CE,ISO9001:2008 Certificates
d. Built business relationship with customers from more than 65 countries and areas
floor decking concrete tile roll forming machine
We will arrange the shipment within 35 working days upon confirmation of purchasing order or recepit of deposit.
Warranty:
One year, and we will provide the technical support for the whole life.
Welcome to our factory,pls contact us
For C purlin roll forming machine,pls click here;
For keel roll forming machine,pls click here;
