Galvanized Steel Floor Decking Forming Machine
- 25 Set / Sets per Month
- Xingang Tianjin
- T/T
You May Like
Product Details
| Condition | New | Type | Other, Tile Forming Machine, Galvanized Steel Floor Decking Forming Machine | |
| Tile Type | Steel | Use | Floor | |
| Production Capacity | 10m/minute | Place of Origin | Hebei, China | |
| Brand Name | XingBo | Model Number | FX-688 | |
| Power(W) | 18.5kw | Voltage | 380V | |
| Dimension(L*W*H) | 15m*2.2m*1.65m | Weight | 11T | |
| Certification | ISO,CE | Warranty | one year, 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

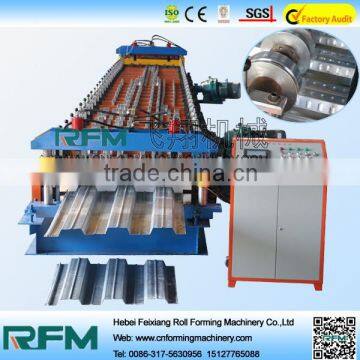

Galvanized Steel Floor Decking Forming Machine
Decoler -active feeding-forming -caculate length --automatic cutting --product
2. The introduction of equipment
Hydraulic decoiler ,roll forming machine, hydraulic cutting ,electric system,hydraulic system, out put stand
| Name | SET |
| 5T Manual decoiler | 1 SET |
| Main forming machine | 1 set |
PLC control system | 1set |
| oil pump | 1 set |
| product | 1 set |
3. Technical specifications
1Manual inner tight decoiler
a. coil inner diameter 450mm-550mm
b. maximum width of coiling1200mm
c. maximum weight of loading5000kg
4.Main forming machine
No. | Item | Description |
1 | Suitable material | Strip steel |
2 | Working speed | 8-10m/min not including punching and cutting |
3 | Main motor power | 11.5kw with cycloidal reducer |
4 | Hydraulic station power | 7.5kw |
5 | Electrical control system | PLC control system with famous brand |
6 | Thickness of material | 1-3mm |
7 | Shaft diameter | 80mm |
8 | Roller station | 12stations |
9 | Material expand axis | 200-600mm |
10 | Dimension | 11mX1.3mX1.35m |
11 | Driving mode | Chain |
12 | Electric tension | 380V 3phase 50HZ or as the customer's requirements |
13 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
Material of cutting | Cr12 mould steel with quenched treatment | |
15 | Working time | Can be 24 hours |
16 | Workers | 1-2 only |
Other type roll forming machine pls click here
Main Company :Hebei Feixiang Roll Forming Machine
Branch company : Dongguang County Feitian Cold Roll Forming Machienry Co.,Ltd
Thanks very much for your time, welcome to contact Feixiang , we are with you within 24 hours.
We want to know following information.
1), What is the exact profile you want to produce?
2), What kind of material you will use, such as steel or aluminium, max coil weight, thickness?
3), What kind of decoiler and stacker you need?
Pls contact us as below informaiton,hope can cooperate,thanks advance.
