Home > Products > 3 horse float > Deluxe 3-horse Angle Load Horse Trailer

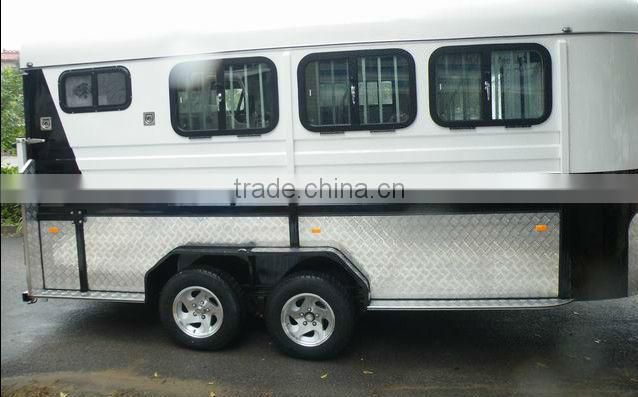

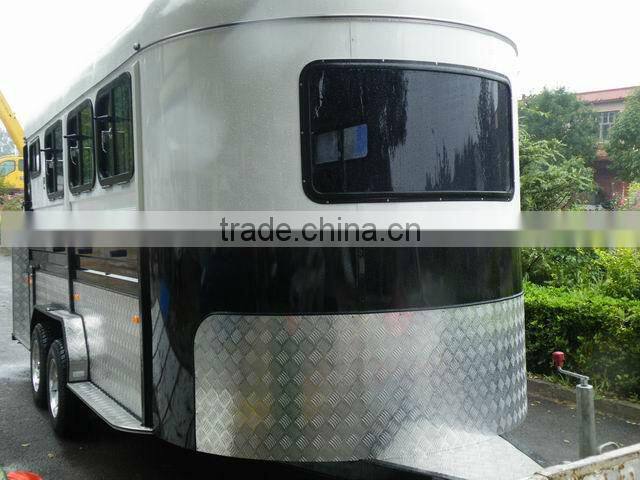

Deluxe 3-horse Angle Load Horse Trailer

FOB Price

US$ 6,000 - 8,000 / Unit

3 Units(Min. Order)

Port Qingdao

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

OEM No.	3HAL-L500	Max Payload	2500KGs
Size	5925 x 2290 x 2600	Place of Origin	Shandong, China
Brand Name	Standard	Model Number	STD-3HAL-L500

Product Description

Specifications

1.safe and high quality;
2.saled directly by factory at the best price;
et Australia standard

The following pictures are owned by Shandong Standard Trailer Co.,Ltd,
infringement rights reserved.

detailed drawing

3mm Fiber-glass roof ,durable and sturdy

Double electric axles ,50*50 , making the trailer more strong

Rock suspension

Adjustable Knight wheel , Floats can be parked in a safe and secrue place

Drop-down windows and side windows with high quality

All the LED Conform to ADRS

Rug rack with small door

Break away System guarantee the safety of floats and horse in some extreme cases

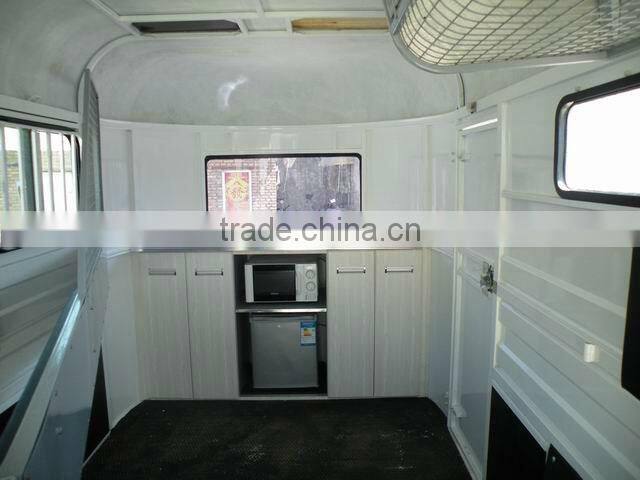

Beautiful and durable cupboard

Exquisite saddle box

All the screws&nuts&handles use the stainless steel

Detailed parameter

Model	STD-3HAL-L500
Materials	Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm)
	Frame Material: double hot dip galvanized RHS (2.5mm)
	Body Panel: galvanized sheet (1-1.5mm)
	Roof: Special molded FRP 3mm
Brake	double axle electric brakes
Drawbar	Drawbar Checker Plate 1.2mm aluminium
	Drawbar Safety Chain two & Bracing Wheel one
Suspension	Roll rocker tandem spring 8 plate
Axles	Two special trailer axles 50*50mm
Wheels & Tyre	Five 205R14 tyres and 14’ aluminum alloy rims including a spare wheel
Rubber Matting	18mm special plywood for floor& ramp door
	Rubber Matting For Inner Side Panel 6mm Rubber Matting
	Rubber Matting For Floor & Ramp Door 17.5mm anti-slip rubber sheet
Windows& Doors	Front Window (mm) 1220*610mm
	Side Windows 6 Drop-down windows 3
	Vents two large size upturning ventilation windows
	Rear Upper Door (mm) 1980*1065 Strut & High-intensity anti-rust strut
	Ramp Door (mm) 2030*1210
	Side Door (mm) 1730*615
	Hinges for Rear Upper Door special 6mm diameter copper hinges
Supporting Wheel	Swing-able knight supporting wheels to make parking safe and reliable
Lights& Retro Reflectors	Trailer Plug Seven-prongs plug
	Rear Lights brackets aluminium
	LED interior lights, two small LED sidelights, two LED combination taillights
	Retro Reflectors 8
Auxiliary Fittings	Cupboard Front
	Horse Protection Frame fully padded
	Horse Ring 7
	Saddle Rack in saddle box(1200mm height for 3 saddles)
	Rug Rack Side
	Saddle Box One
Dimensions	Body Dimension (L x W x H: mm) : 5075 x 1980 x 2230
	Inner Dimension (L x W x H: mm) : 5025 x 1930 x 2155
	Overall Dimension (L x W x H: mm): 5925 x 2290 x 2600
	Length of Tone (mm): 850
Empty Weight	1900 KGs
Carrying Capacity	2500 KGs
