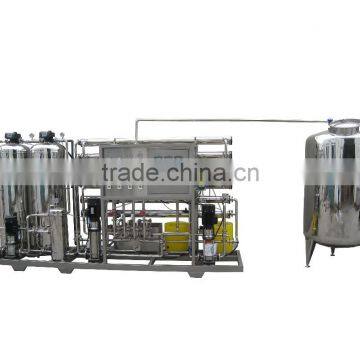

pre-treatment filters+RO+UV sterilizer/ozone generator for drinking water production line

A. 2000L Raw water tank which is made of PE or Stainless Steel, as customer's requirement

B. Multi media filter is made of Stainless Steel 304 and the specification is 500mm(diameter)*1600

     mm(height), thickness is 2mm.The filter media is 350KG quartz sand

C. Activated carbon filter is made of Stainless Steel 304 and the specification is 500mm(diameter)*1600mm

    (height), thickness is 2mm.The filter media is 100KG activated carbon

D. 2000L/h RO unit including:

    1. High pressure pump is made of Stainless Steel 304. The brand name is CNP and model is CDL4-140

      with the rated power 3KW

    2. RO membrane adopts Vontron membrane or imported famous brand as customer's requirements.

       An alternative choice is provided: 8040 component membrane--2pcs

                                                     4040 component membrane--8pcs

    3. Membrane housing is made by our compaby with Stainless Steel 304

       An alternative choice is provided according to your choice of membrane.

    4. Pressure gauge,flow meter,automatic flushing valve,pressure flow regulating valve,recovery regulating

       valve, frame included

    5. Electrical box is made of Stainless Steel 304 and the specification is 400mm(width)*500mm(length).

        Including RO controller,pressure switch,conductivity meter,wire&cable.

    6. Pipes&fittings adopt Stainless Steel 304

E. Storage tank(optional item)

    2000L pure water tank is made of Stainless Steel 304 by our company, air filter+manhole included

F. Ozone generator(optional item)

    1.6g/h oxygen source generator or 6g/h air source generator(alternative)

    2.mixer

G. UV sterilizer(optional item)

    rated treatment capacity is 3T/h with 40W Philip lamps

This RO system is mainly used to get pure water and pre-treatment water for all kinds of beverage. It can effectively get rid of suspended matters and smell and color in raw source water,also filter substances such as organics,microorganisms,chloride,colloidal particles,residual chlorine so as to make it reach to standard of drinking water.

Packaging details: customized/wooden package

Delivery Details: 15--60 days based on capacity and quantity

12 months warranty and free maintainance cost

24 after-sales service online

Whole life free technical support

Trace for order until you get the goods

Engineer available to go abroad for installation and training

Wentong Water Treatment Co., Ltd, established in 1997, 100 workers, over 800 square meter factory workshop and independent office space. Manufacturer of high quality water treatment equipment and spare parts for food, beverage, pharmacy, power plant, cosmetic, leather, electron and other industries.

As a manufacturer and enterprise supported by the government, we have obtained CE, ISO9001:2008 attestation and certificates from UK, Germany. The water quality standard meet with Chinese Pharmacopoeia of 2010 version, Pharmacopoeia requirements of USA and EU, GMP standard and FDA attestation.

1. Are you factory or trading company?

 We are manufacturer and supplier of water treatment equipment and various accessories for 20 years.

2. What capacity of water treatment equipment you can manufacture?

 Generally from 250L/H to 200T/H

3. How long the consumables should be replaced?

Strictly speaking, it depends on source water quality. There is an approximate timetable for consumables replacement:

a. quartz sand, activated carbon:    2-3 years

b. water softening resin:                  1 year

c. PP filter element:                      2-3 months

d. RO membrane:                         2-3 years

e. UV lamp:                                  8000 hours

All the consumable replace period will be depend on the feed water quality.

Feel free to contact with us!
