ZHSP-100Y pvc label shrink machine

                                                   ZHSP-100Y Shrink Sleeve Label Machine

Description:

1. Full stainless steel (304) protective of main engine: Lead your worker can be safer to operate; the machine is fully waterproof stainless steel.

2. Cutter plate: Unique cut off, double blade for long using life

3. Label control sensor shelf: original creation tail surface and sensor are combined to improve the precision of cutting the material.

4. Touch screen:  operate humanization

                                                                                                                                                                              Main machine:
Speed:100bpm
Power supply:φ AC220V 50/60hz
Power consumption: 3KW
Outside size:2400(L)*9500(W)*2500(H)
Quantity of air consumed:50kg/hr
ContainerRange: 30—85mm (Dia.)
LabelRange:40—240mm (L)
0.035—0.082mm (Thickness)

Steam tunnel

1. Size:2000L* 400W* 2100H

2. Power: AC 220V

3. Consume power: 0.75KW

Equipment  component

1. PLC controller   Japan Mitsubishi

2. step motor :China step

3. Touch screen LCD:  TaiWan

4. Sensor:  Japan Sunx

Terms and Conditions:

Payment: 30%TT in advance, 70%TT before machine ship out;

Delivery time: around 50 days to leave our factory after advance payment and samples

Warranty: one year after shipment.

Packing: according to export standard

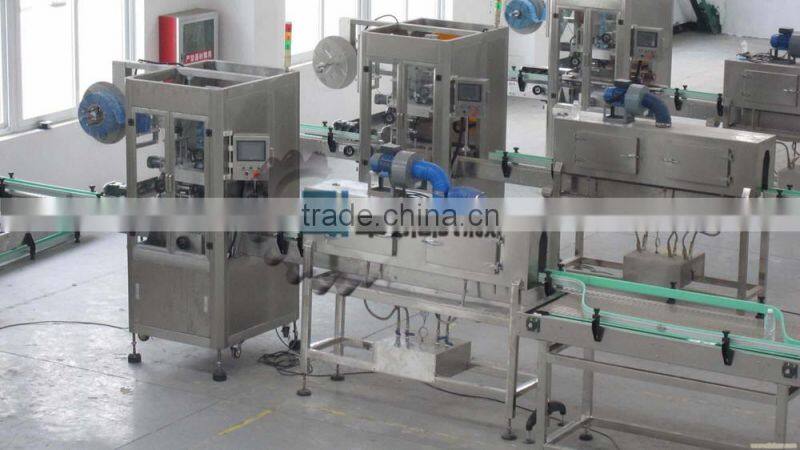

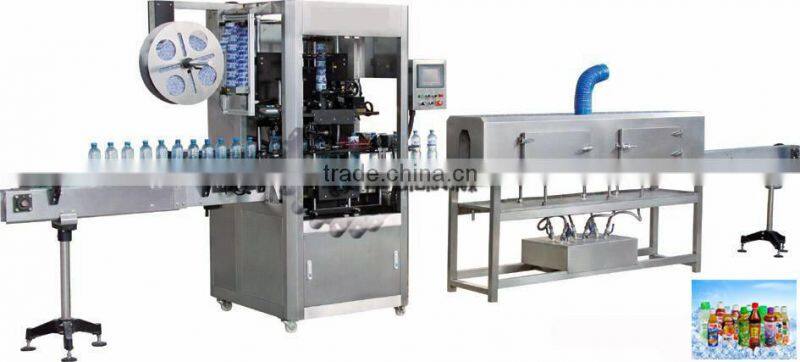

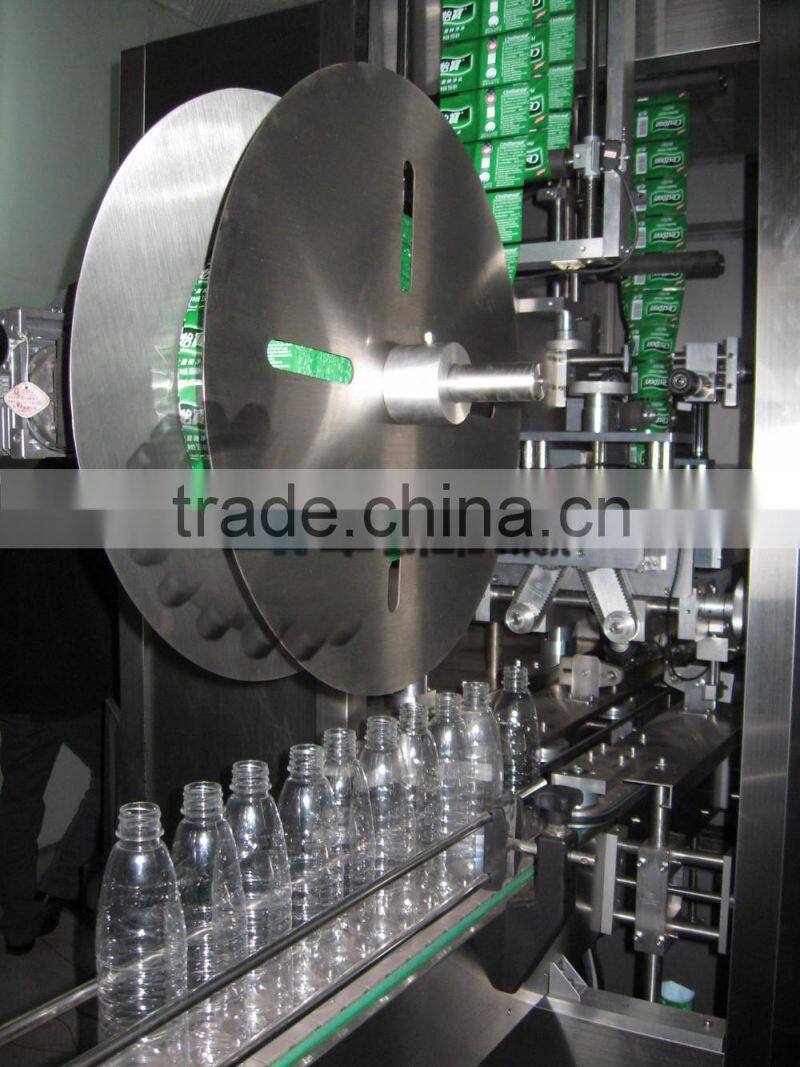

See following some photos :

Welcome to email us to know more advantages of our machine. We will send you videos and detailed photos together, which will surprise you !!
