DGS-118 Oral Liquid Filling and Sealing Machine
- shanghai ningbo
You May Like
-
Zhonghuan Liquid Auto-form Filling Machine DGS-118
-
Liquid BFS Auto-form Filling Macine DGS_110A
-
BNSGS Oral Liquid Filling & Capping Machine
-
DGS_110A Automatic Filling&sealing Machine for Forming the Plastic Bottle of Oral Liquid
-
Liquid BFS Auto-form Filling Machine DGS350
-
SG16-24 Type Oral Liquid Filling Capping Machine
Product Details
| Condition | New | Application | Beverage, Chemical, Food, Medical | |
| Packaging Type | Bottles | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Mechanical | |
| Voltage | 220v-380v/50Hz | Power | 3.5kw | |
| Place of Origin | Zhejiang, China | Brand Name | Zhonghuan | |
| Model Number | DGS-118 | Dimension(L*W*H) | 1300X1700X750(mm) | |
| Weight | 300kg | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic Filling&Sealing Machine for Forming the Plastic Bottle of Oral Liquid
Main features:
Controlled bu PLC,the frequency convesion in fintely variable speeds.
All 6 processes from spreading roll,AMP bottle forming,filling,sealing the end,printing serial numbers,cutting the end ,cutting apart,controlled by programming.
The filling head doesn’t drop.leak,rise in bubbled and spill over.
Automatic and mechanical botting,precise calculation and limited deflectiom.
Main Thechnical Data:
Max forming depth: 12mm
Cutting frequency: 0-15
Acking material: PVC/PE(0.2-0.4)×120mm
Capacity: 2-25ml
Installed power: 3.5kw
Power:220v-380v/50Hz
Weight: 300kg
Outer Size: 1300×1700×750(mm)
Terms and Conditions:
Payment: 30%TT in advance, 70%TT before machine ship out;
Delivery time: around 50 days to leave our factory after advance payment and samples
Warranty: one year after shipment.
Packing: according to export standard

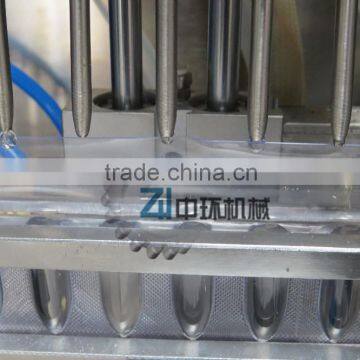

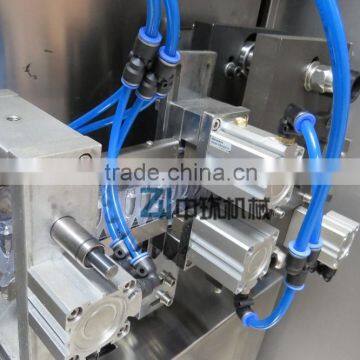

See following some photos :
Welcome to email us to know more advantages of our machine. We will send you videos and detailed photos together, which will surprise you !!
