Product Details
| Brand Name | XIANGXIN | Model Number | DL8M-12L | |
| Place of Origin | China |
Product Description

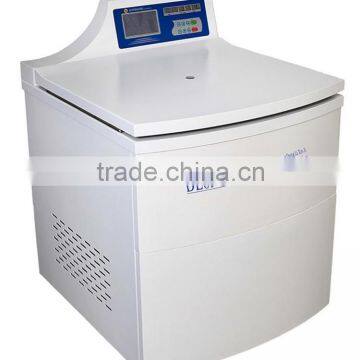

DL8M-12L
Super large capacity refrigerated centrifuge
Feature
l Large color touch screen display, both shows the set parameters and operation parameters.
l All stainless steel internal and external structure, corrosion resistance and durable.
l Use the imported compressor from TAIKANG,FRENCH,with the accurate temperature control system.
l Max capacity:6×2400ml or processing 18 bags of 400ml whole blood at one time.
l An easy-going operator interface with a standard English operating software, user can operate freely.
l With 35 operational programs can be designed, saved and used. Users can set 9 programs for daily operation use
l With the self-diagnositc system and protection for imbalance, over-speed and over-temperature. Both automatic electronic lock and mechanical lock to ensure safety.
l Acc/Dec 10 rates from 0~9 grade; Display speed of rise and fall curve, integral curve and temperature curve.
l Equipped with standard interface can connect computer to operate centrifuge, and composition local computer management system.
l Widely used in the field of blood station,pharmaceutical factory,biochemistry,biological products and so on.
Technical Parameters
Model | DL8M-12L |
Max Speed | 8000r/min |
Max RCF | 16872xg |
Max Capacity | 6×2400ml, 6×3×400ml(whole Blood) |
Speed Accuracy | ±50r/min |
Timer Range | 0-23h 59 min |
ac/dc Rate | 0-9(Grade) |
control&drive | (microprocessor control/direct drive) |
Daily-use Program | 9 |
Program Storage Capacity | 35 |
Refrigeration System | Imported High-performance Compressor CFC-free Refrigeration System |
Motor Power | 3KW |
Refrigerator Power | 2.5KW |
Noise | ≤65dB(A) |
Power Supply | AC220v 50Hz 35A |
Weight(Without Rotor) | 500kg |
Dimensions | 960×860×1200mm(L×W×H) |
Rotor
Number | Max Speed | Max RCF | Capacity |
NO.1 Swing Rotor | 4000r/min | 5900 xg | 2×6×1000 ml |
NO.2 Swing Rotor | 4000r/min | 7060 xg | 6×2400 ml |
NO.3 Swing Rotor | 4200r/min | 5900 xg | 24×200mlQuadruple Tube 12×400-500mlBlood Bag |
No.4 Angle Rotor | 8000r/min | 16872xg | 6×1000ml |
Centrifuge:
Rotors:
Pictures in Chamber:
Hunan Xiangxin Instrument and Metal Co., LTD is specialized in manufacturing and sales of high-tech centrifuges with a history over 15 years and now manufactruing 5 series and over 60 centrifuge varieties, 80% of which are exported to the overseas market and well accepted and trusted by customers.
The company certified by ISO9001:2008,CE. ISO13485 as well as Medical Device Quality Management System has successively been in co-production of first domestic high-speed refrigerated centrifuge with Tomy in Japan,low-speed large-capacity refrigerated centrifuge with Beckman in the United States and super-large capacity refrigerated centrifuge with Germany’s Siemens respectively. These co-manufactured centirfuges are mainly exported to overseas market. Our products have been exported to the USA, Mexico, Russia, France, South Africa, India, Indonesia, Iran, Saudi Arabia, Cuba, Nigeria, Turkey, Brazil and so on.
"Quality and Reliability” is the company’s first priority.We will provide high-quality product and top after-sales service for our customers with reputation.
