Home > Products > Refrigerated Centrifuges > Bentchtop Low-speed Large Capacity Centrifuge TDL5M/TDL6M
Bentchtop Low-speed Large Capacity Centrifuge TDL5M/TDL6M
- 20 Set / Sets per Month
- any port
- Credit Card
You May Like
-
Low-speed Large Capacity Centrifuge TDL5M/TDL6M
-
Large Capacity Refrigerated Centrifuge DL-6MC
-
Micro Benchtop high speed refrigerated Centrifuge TGL-16X
-
GL-21MC/GL-22MC HIGH-SPEED REFRIGERATED CENTRIFUGE
-
Large cpacity type Continously centrifugal machine for production GL-21MC
-
Large type Continous flow centrifugal machine for production GL-21MC
Product Details
| Brand Name | XIANGXIN | Model Number | TDL5M TDL6M | |
| Place of Origin | Hunan, China |
Product Description
Bentchtop Low-speed Large Capacity Centrifuge
TDL-6MC/TDL6M
Features
1.Adopt advanced CPU control system to realize microprocessor control of rotate speed, temperature and RCF.
2. Maintenance-free frequency conversion motor can prevent over-speed operation.
3. With imported freon-free refrigeration system operating, for the purpose of environment protection.
4.With protection from over speed, over temperature, imbalance and protection of automatic electronic or mechanical lock, to ensure the safety of operators and machines.
Technical parameters
Model | TDL6MC | TDL6M | ||
Max Speed | 6000r/min | |||
Max RCF | 5470xg | |||
Max Capacity | 6x500ml | |||
Temp Range | -20°C~+40°C | |||
Temp Accuracy | ±1°C | |||
Timer Range | 0-99min | |||
Motor | Microprocessor control, Frequency conversion motor | |||
Noise | ≤ 60dB (A) | |||
Power Supply | AC220V&110V 50HZ 10A | |||
Dimension | 830*750*480mm(L*W*H) | |||
Net Weight | 150kg | |||
Rotor
| ||||
Number | Max Speed | Max RCF | Capacity | |
NO.1 Angle Rotor | 6000r/min | 4500xg | 12x10/15ml | |
NO.2 Swing Rotor | 4000r/min | 4390xg | 6x500ml | |
NO.3 Swing Rotor | 4000r/min | 4100xg | 148x7ml | |
NO.4 Swing Rotor | 4000r/min | 3600xg | 4x500ml | |
NO.5 Swing Rotor | 4000r/min | 5470xg | 4x750ml | |
NO.6 Swing Microplates Rotor | 4000r/min | 2300xg | 2x2x96holes | |
NO.7 Swing Rotor | 4000r/min | 2810xg | 8x50ml | |
NO.8 Swing Rotor | 4000r/min | 3840xg | 96x5/7ml | |

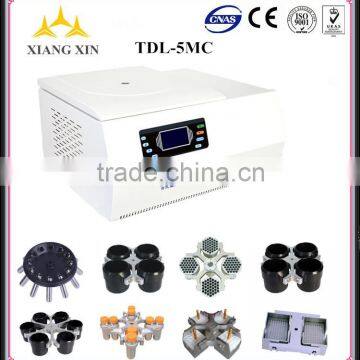

Centrifuge:
Rotors:
pictures in Chamber:
Hunan Xiangxin Instrument and Metal Co., LTD is specialized in manufacturing and sales of high-tech centrifuges with a history over 15 years and now manufactruing 5 series and over 60 centrifuge varieties, 80% of which are exported to the overseas market and well accepted and trusted by customers.
The company certified by ISO9001:2008,CE. ISO13485 as well as Medical Device Quality Management System has successively been in co-production of first domestic high-speed refrigerated centrifuge with Tomy in Japan,low-speed large-capacity refrigerated centrifuge with Beckman in the United States and super-large capacity refrigerated centrifuge with Germany’s Siemens respectively. These co-manufactured centirfuges are mainly exported to overseas market. Our products have been exported to the USA, Mexico, Russia, France, South Africa, India, Indonesia, Iran, Saudi Arabia, Cuba, Nigeria, Turkey, Brazil and so on.
"Quality and Reliability” is the company’s first priority.We will provide high-quality product and top after-sales service for our customers with reputation.
