Fan Refrigerator Motors AC 240V Low rpm high torque Synchronous Motor Engine SD-83-650 Fan Parts

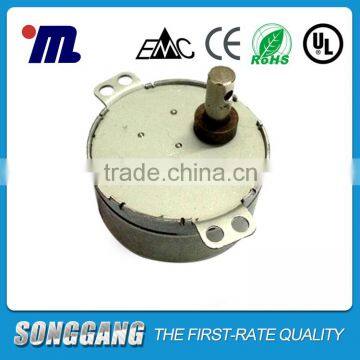

Introduction of Synchronous Motors SD-83

With over 20 years history in motor areas, Songgang is experienced in manufacturing and developing kinds of synchronous motors. All the components and process are finished in our own factory, including the magnet, gear and shaft. Materials are imported from Germany and Japan. Songgang's mission is to produce supreme quality and to offer our customer professional service. We are continously upgrading our facility and producing system to reach this goal. Our in-house facilities provide the versatility and capability to do a complete job for you and to serve you base on your requirements.

SD-83 is one of our most popular synchronous motor series in world with high life span, low noise, low temperature rise, high temperature insulation, high durable gears. We have CE Marking Approval and EMC Approval. Our customers is all over 30 countries, USA, UK, Germany, France, Indonesia, Malaysia, New Zealand...etc.

Specifications can be made as customer's requirements:

• Rated Voltage: 12V, 24V, 100V, 110 ~ 120V, 200 ~ 240V AC
• Power Frequency: 50/60Hz
• Input Power: 4 W
• Number of Poles: 12 P
• Rotor Speed: 500 ~ 600 RPM
• Output Speed: 0.8~ 72 RPM
• Rotation: CW, CCW, Free
• Start Torque: 500 gm-cm ~ 10Kg-cm (5Kg-cm at 5RPM)
• Rated Torque: 500 gm-cm ~ 20Kg-cm
• Operating Temperature: -10 ℃ ~ 60℃
• Insulation Strength: AC 1500V - 1 Min
• Insulation Class: A, B, F Class
• Lead Wiring: 1007 / 1015 X AWG # 22 X 200 mm

Please let us know the following Parameter if we are lucky to attract your interests:

1. Voltage & Frequency
2. Number of revolutions and direction of rotation
3. Type of output shaft ( Our standard shaft our your customized shaft)
4. Torque on output shaft
5. Length of lead wire if you have requirements

Main Features

Shenzhen Songgang Technology Co., Ltd.is one branch of Songgang international group company. The headquarters is in Hongkong. We have factories both in Taiwan and mainland China, producing kinds of AC motors and DC motors, such as synchronous motor, hysteresis motor(HTS), Dc gear motor, DC brush motor, brushless motor, planetary gear motor, stepper motor.

As the unique professional manufacturer producing synchronous motor of metal gear, Taiwan manufacturer serves manufacturers at home and abroad with the best service and superior quality and performance.

The company (in mainland China)have the power of import and export, and provide the most suitable motor and the relevant technology which makes our products sold to more than 30 countries.

Taiwan manufacturer of our company not only acquired the approval of ISO9002 International quality system certification, but also passed through UL the United States quality certification, CE /EMC the European Quality certification and ROHs environmental protection certification.

Our company not only have high self-making ratio products,but also keep improving high quality production management of equipments,which makes our company have more speedy and flexible service.

In order to meet the customers' needs of diversified development, we serve as an agent, also import Mabuchi motor from Japan. Our products can be delivered to customers form our warehouses, and also from HongKong,mainland China.

Our company will continue to uphold the spirit of seeking for greater perfectionand innovation in the future, and will be committed to create a new eara of synchronous motor.
