Electric Motor For Bicycle AC 240V Synchronous Motor Machine SD-83-639

Introduction:

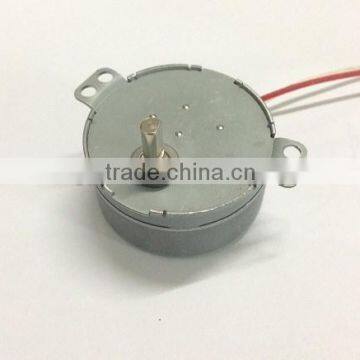

SD-83 is round motor of two side fixing hole. The rotation speed is 0.8 to 60 RPM, positive rotation, reverse rotation and two-way rotation. It use to the slowly action product of long time and high torque.

Application:
Household electrical appliances / box fans / air-conditioning / cooling fan / heating machine / microwave / oven / a plastic machine/ stage lights / Christmas tree Wheel / automatic controller /jewelry toy

Specifications:
• Rated Voltage: 200 ~ 240VAC
• Power Frequency: 50/60Hz
• Input Power: 4 W
• Number of Poles: 12 P
• Rotor Speed: 500 ~ 600 RPM
• Spindle Speed:0.8~ 72 RPM
• Start Torque: 500 gm-cm ~ 20Kg-cm
                     (5Kg-cm at 5RPM)
• Spindle Rotation Direction: CW, CCW, Free.
• Operating Temperature: -10 ℃ ~ 60℃
• Insulation Strength: AC 1500V - 1 Min
• Insulation Class: A, B Class
• Lead Wiring: 1007 / 1015 X AWG # 22 X 200 mm

Characteristics:
• The U.S regulation—UL quality certification, the EU regulation—CE Marking and RoHS,EMC quality certification.
• Gear group for the senior steel teeth, the copper teeth and steel teeth.
• Copper gear is made by Swiss precision hobbing.
• The motor shell is made by galvanized steel sheet (SECC).
• Low-noise, temperature rise low and insulation high temperature.
• High-torque, long locked, motor not burned.

Exterior Material:

steel plate: from JapanMitsubishi ,zincification;gear:metallic copper/steel plate (switch gear:steel plate from Japan Sumitomo/fibre glass of plastics/DuPont plastics),magnet material:magnet powder

Ordering information:
• Minimum order:
• Basic Package: 100 / CTN
• Basic Carton Size: 370 x 370 x 200 mm / 300 X 590 X 135mm
• Weight (NW / GW): 12.5 Kgs / 13.5Kgs

Other information:
•certificates, awards and process.
•Sample: standard motor size such as picture, the unique requirements, Please provide the necessary axis, bearings, rotation speed, rotation, torque and uses.
•Also provide special rotation speed and high-strength torque, please contact our business department.
•The bearing has three kinds of size, and has special bronze bearing, roller bearings, and so on.
