Home > Products > Overhead accessory > XGU Aluminum Alloy Cable Suspension Clamp For Pole line fitting
XGU Aluminum Alloy Cable Suspension Clamp For Pole line fitting
Negotiable
/ Piece
100 Pieces(Min.Order)
- FUZHOU
- T/T Credit Card
You May Like
-
NLD Malleable Iron Strain Clamp,Overhead Line Fittings
-
NES Aluminium Alloy Cable Clamp,Overhead Line Fittings online sell
-
New style useful four core dead end clamp online sell
-
Hot dip galvanized hardware pigtail strip bolt
-
OEM hot dip galvanized Mounting Clamp Adapter
-
Factory made high quality bolt spool nuts stay rod for sale
Product Details
| Place of Origin | Fujian, China | Brand Name | Bonle | |
| Model Number | XGU | Usage | Other, Hanging overhead line | |
| Material | Aluminium | Structure | Suspension Clamp | |
| Standard or Nonstandard | Standard |
Product Description

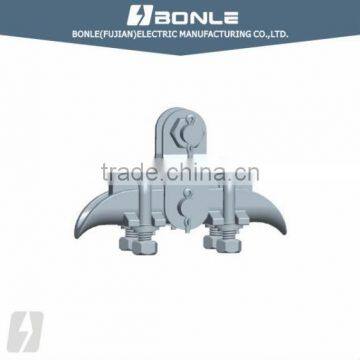

XGU Aluminum Alloy Suspension Clamp For Pole line fitting
1.We are manufacturer
2. We'd like to process what the buyer's need according to the supplied drawing sheets.
3. OEM provide
4.With hot dip galvanized finish
The clamp body and keepers are aluminium alloy, cotter-pins are stainless steel, the other parts are
hot-dip galvanized steel.
| XGU Aluminum Alloy Suspension Clamp/cable clamp/Pole line fitting | ||||||||
Catalog NO. | Conductor Dia. (mm) | Dimensions(mm) | Rated Failure Load (kN) | Weight (kg) | ||||
| H | L | R | C | M | ||||
| XGU-1 | 5.0~7.0 | 82 | 180 | 4.0 | 18 | 16 | 40 | 1.4 |
| XGU-2 | 7.1~13.0 | 82 | 200 | 7.0 | 18 | 16 | 40 | 1.8 |
| XGU-3 | 13.1~21.0 | 102 | 220 | 11.0 | 18 | 16 | 40 | 2.0 |
| XGU-4 | 21.1~26.0 | 110 | 250 | 13.5 | 18 | 16 | 40 | 3.0 |
Contact Way:
Tel:15005080705
QQ:2395616865
Skype:ann_enjia
Contact Us
- Bonle (Fujian) Electric Manufacturing Co., Ltd.
- Contact nameADA Z Chat Now
- Phone86-591-88000140
- Address91# taiyu rd.,fuwan yuan,jinshan industrial zone,, Fuzhou, Fujian
