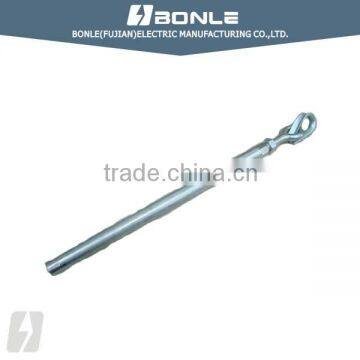

Hot dip galvanized turnbuckle stay rod transmission line project

Specifications

  ♦ Material

•The tubular turnbuckleshall be manufactured from heavy gauge steel tube as specified in

BS 1387 or equ standar.

•The threads shall be to BS 3643, coarse pitch, tolerance class 7H/8g (free fit) or equ standar..
• The screw-in stay anchor and the adjustable head shall be manufactured from Grade 43A steel

as specified in BS 4360 or equ standar.
• The thimble shall be manufactured from standard crescent shaped steel bar as used for thimbles

 to BS 464 or equ standar.

♦ Conditions

The Tubular Stay Rods and Turnbuckles shall be suitable for continuous use outdoors in tropical areas at humidities of up to 90%, average ambient temperature of +30ºC with a minimum of -10ºC and a maximum of +40ºC and heavy saline conditions along the coast. The level of galvanizing for all ferrous parts shall be suitable for these
conditions.

♦ Accept OEM  Project

♦ Introduce

The Bonle Group was established in 1992, and for the past 19 years we have been supplying various products to overseas customers for the electrical engineering industry, including, but not limited to, insulators, power fittings (spindles, cross arms, strain clamps), fuse cut outs, arrestors , and conductors.

♦ Our Cetificate
