America type 23ton heavy duty trailer axles
- 2000 Piece / Pieces per Month
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Parts | Trailer Axles | Max Payload | 23 ton | |
| Size | 13ton 14ton 16ton 20ton 23ton | Place of Origin | Shandong, China | |
| Brand Name | KETIAN | Model Number | KT |
Product Description
America type 23ton heavy duty trailer axles
Feature:
1) Reasonable structure,
2) Good braking quality,
3) High-intensity,
4) Big rigidity,
5) Long life as well as strong bearing capacity,
6) Passed the national authoritative department's monitor.
7) ISO9001:2000 and TS16949 certified.
8) Exported to many countries such as USA, Europe, Middle East, Southeast Asia and Africa etc
Characteristics:
1).Special heat-treat, low-alloy steel axle beam, it has the virtues of good synthetic performance, strong load ability and lower self weight.
2).High quality alloy solid inserted spindle, through wholly heat treatment, provide superior fatigue capability.
3).High performance premium non-asbestos brake linings, extend service life.
4).Easy for ABS installation.
5).Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
6).New tight fit hub capO rings, high property for sealing.
7).Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
8).Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims.
Specification:
German type axle
Model | Rated Load | Total Length | Track | Axle Tube | P.C.D | H | Studs |
KTG-12T | 12000 | 2144 | 1840 | 150*150*12 | Φ335 | Φ281 | 10-M22 |
KTG-14T | 14000 | 2198 | 1840 | 150*150*14 | Φ335 | Φ281 |
|
KYG-16T | 16000 | 2272 | 1850 | 150*150*16 | Φ335 | Φ281 |
American type axle
Model | Rated Load | Total Length(mm) | Track | Axle Tube | P.C.D | H | Spring |
KTA-10.5T
| 10500 | 2165 | 1820 | Φ127 | Φ335 | Φ281 | ≥950 |
KTA-13T
| 13000 | 2185 | 1840 | Φ127 | Φ335 | Φ281 | ≥930 |
KTA-13T
| 13000 | 2185 | 1840 | 150*150 | Φ335 | Φ281 | ≥930 |
KTA-14T
| 14000 | 2185 | 1840 | 150*150 | Φ335 | Φ281 | ≥930 |
KTA-16T
| 16000 | 2205 | 1850 | 150*150 | Φ335 | Φ281 | ≥940 |
KTA-20T
| 20000 | 2252 | 1850 | 150*150 | Φ335 | Φ281 | ≥940 |

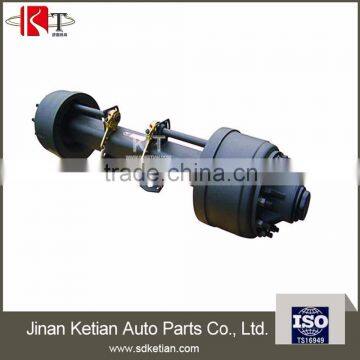

America type 23ton heavy duty trailer axles

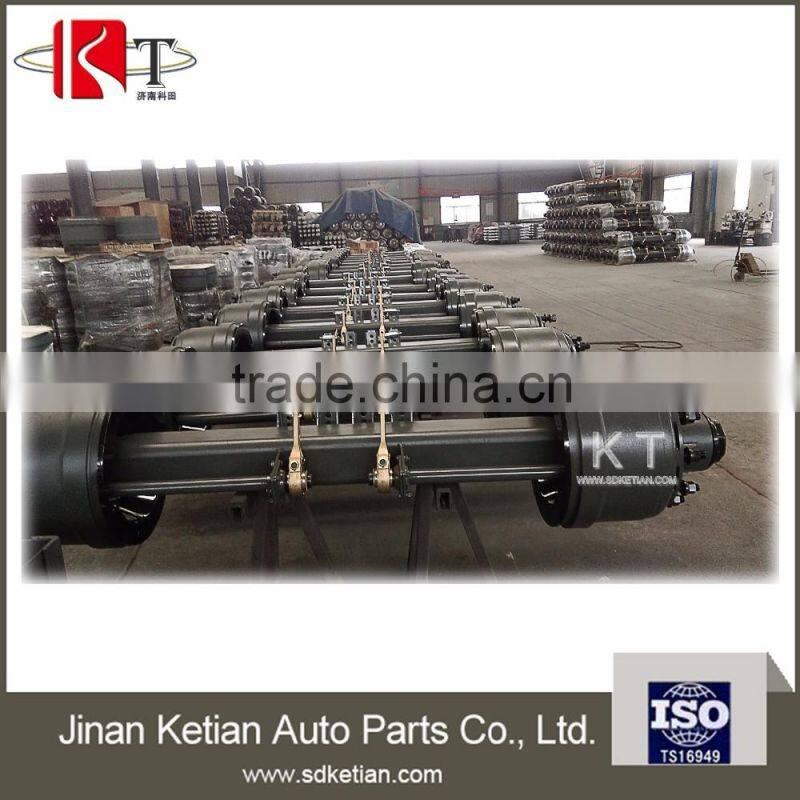

Our trailer axle workshop
Our show
Our Certificate
