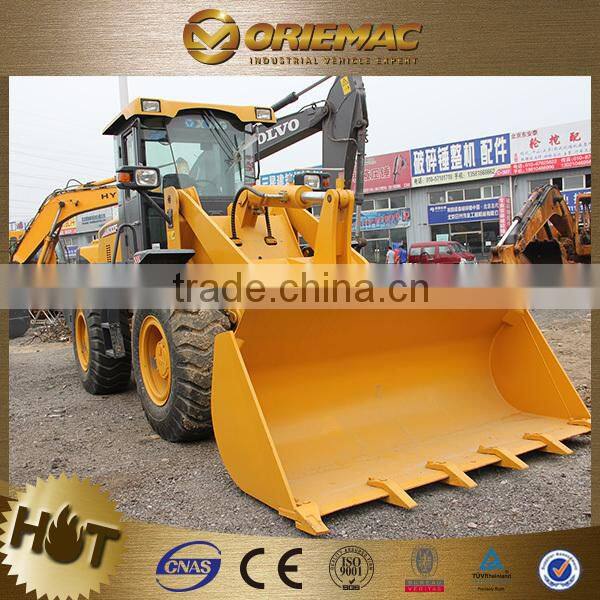

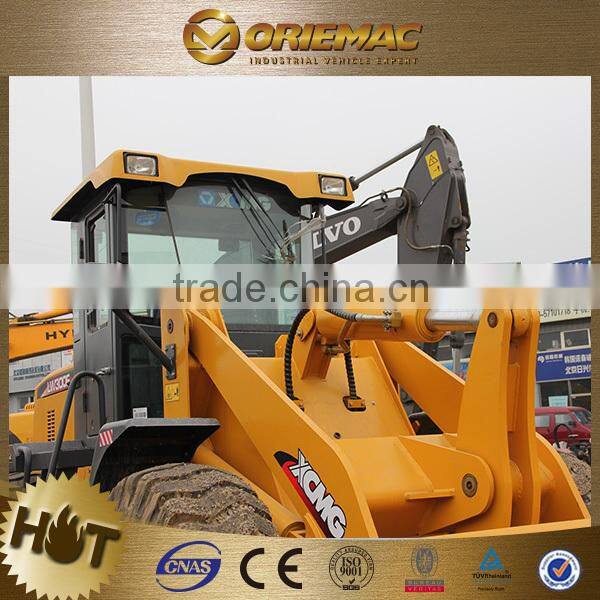

3ton XCMG LW300F Wheel Loader

FOB Price

US$ 30,000 - 50,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	XCMG
Model Number	LW300FN	Place of Origin	Jiangsu, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	725025803290 mm	Rated Load	3 ton
Certification	ISO,CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

3ton XCMG LW300F Wheel Loader!!!

Item	Parameter	Unit
Rated load	3.0	t
Bucket capacity	1.8	m3
Dumping height	2930	mm
Dumping distance	1000	mm
Max.drawing force	≥120	kN
Max. traction	≥90	kN
Dimension (L×W×H)	7250×2580×3290	mm
Operating weight	10.6	t
Boom lifting time	5.68	s
Total time of three devices	10.3	s
Wheelbase	2900	mm
Min. turning radius (bucket outer)	6067	mm
Rated power	92	kW
Long boom parameter
Bucket capacity	1.5/1.8	m3
Rated load	2.7/2.7	t
Dimension (Length × Width × Height )	7540×2580×3290 7640×2580×3290	mm
Dumping height	3290/3225	mm
Dumping distance	1092/1172	mm
Operating weight	10.6/10.8	t
Attachment parameter-grasping grass
Dumping height	3043	mm
Dumping distance	2036	mm
Clamp body width	2200	mm
Max. opening	2800	mm
Attachment parameter-clamp(III)
Dumping height	2784	mm
Dumping distance	1134	mm
Min. circle diameter	590	mm
Max. opening	1700	mm
Attachment parameter-side dumping
Bucket width	2650	mm
Dimension	7414×2650×3290	mm
Dumping height(straight/side) dumping	2813/3623	mm
Dumping distance(straight/side) dumping	1104/183	mm
Lifting height(straight/side) dumping	5120/6052	mm
Attachment parameter-Sliding fork
Fork folding angle	20	°
Attachment length	1575	mm
Attachment width	1980	mm
Attachment height	1200	mm
Fork teeth length
