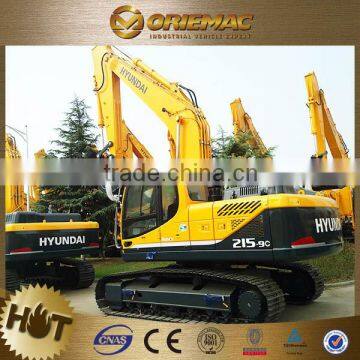

Hyundai long boom excavator R215-9

Hyundai long boom excavator R215-9

Specification:

Operation Weight :                                       20900kg

Bucket Capacity :                                        0.92m³

Engine Model:                                              Hyundai D6BV-C

Engine Power:                                              110kw/1950rpm

Max torque:                         58/1600kgf.m/rpm

Hydraulic system

Working pressure                      330Kgf/cm2

Max.flow                              2*222L/min

Performance

Travel Speed:                                                5.3/3.4km/hr

Swing Speed:                                               12rpm

Max.digging force(bucket)               14370kgf

Max.digging force(jib)                   10240kgf

Max. Traction                          19500kgf

Grade Ability:                                                35degree

Operation Modth:                                  CAPO computer-controlled, self-diagnostic system.

Specification:

A-Crawler Length:                            4160mm

B-track ground length:                        3370mm

C-Stick length:                               2200mm

D-Track shoe width:                           600mm

E-Min.ground clearance:                       480mm

Oil Tank :                 400L

Hydraulic tank:             160L

Dimensions

F-Total length:                                                 9530mm

G-Overall width:                                               2800mm

H- Total height:                                                3030mm

I- Counter weight ground clearance:                1060 mm

J- Tail length                             2770mm

K-Up width                             2740mm

L-Cabin Height                            2920mm

J’- Tail radius of gyration:                                  2840mm

Operating range

A.Max. Digging distance:                  9980mm

A’Max. Surface digging distance          9820mm

B-Max. digging depth:                                      6730mm

B’-Max. Valid digging depth:                  6560mm

C Max.vertical digging depth:                            6280mm

D-Max. digging height:                                    9600mm

E-Max.dumping height:                                  6780mm

F-Minimum radius of gyration:                          3740m
