Home > Products > Earthmoving Machinery > china xcmg excavator XE80 crawler excavator

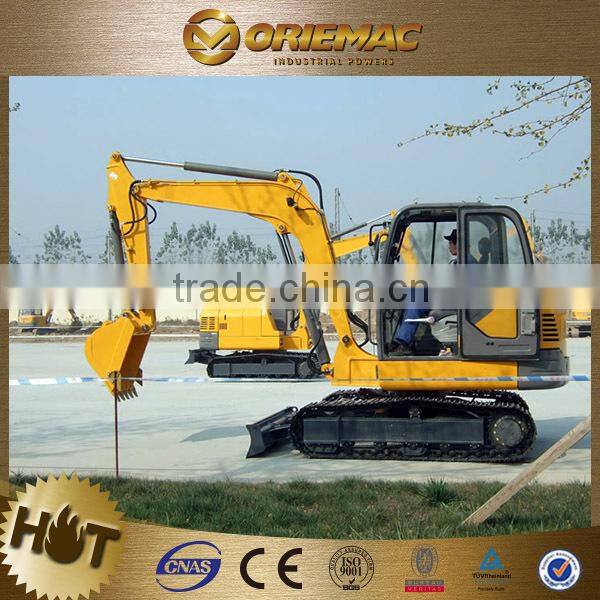

china xcmg excavator XE80 crawler excavator
- 500 Set / Sets per Month
- shanghai qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | XCMG | |
| Model Number | XE60 | Condition | New | |
| Moving Type | Crawler Excavator | Operating Weight | 7,425kg, 7,425kg | |
| Bucket capacity | 0.34cbm, 0.34cbm | Maximum Digging Height | 7,167mm | |
| Maximum Digging Depth | 4140mm | Machine Weight | 7,425kg | |
| Max Digging Radius | 3915mm, 6,375mm | Rated Speed | 4.2/2.6km/h XCMG XE80 | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
2015 new price for hydraulic excavator,crawler excavator !!!
Detailed Product Description
XCMG Excavator XE80
Imported engine of environment friendly and efficient low-consumptions
1. Imported engine of environment friendly and efficient low-consumptions
2. Complete set of imported hydraulic components, excellent control, smooth operation
3. Imported radiator, adapt super load and continuous operation
4. High quality key parts, the chassis configuration of international quality
5. Powerful digging force, slew force and traction force
6. Completed closed PROS / FOPS cab, good vision and protection structure, import luxury seats, safe and comfortable
7. Fast full-open style hood, easy maintenance
8. Anti-collision structure of cast iron weight, the effective protection of turntable and hood
9. Optional hydraulic breaker piping, to facilitate the crushing operation
10. GPS satellite positioning and remote monitoring system.
| Model | XE80 | ||
| Bucket capacity | m3 | 0.34 | |
| Standard bucket width | mm | 722 | |
| Operation weight | kg | 7,425 | |
| Dimension (in transportation) | Overall length | mm | 6,155 |
| Overall width | mm | 2,220 | |
| Overall height | mm | 2,618 | |
| Min. clearance | mm | 392 | |
| Engine | Model | CumminisB3.3 | |
| Total displacement | L | 3.3 | |
| Rated output power | KW/rpm | 60/2200 | |
| Digging performance | Max. digging height | mm | 7,167 |
| Max. dumping height | mm | 5,100 | |
| Max. digging depth | mm | 4,140 | |
| Max. vertical digging depth | mm | 3,218 | |
| Max. digging radius | mm | 6,375 | |
| Boom deflection angle | ° | ||
| Min. slew radius | mm | 1,815 | |
| Min. rear slew radius | mm | 1,770 | |
| Bucket digging force | kn | 53.6 | |
| Track type | Steel | ||
| Track width | mm | 450 | |
| Travel System | Track length | mm | 2,752 |
| Wheel base | mm | 2,119 | |
| Track gauge | mm | 1,700 | |
| Travel speed (Gear I/II) | km/h | 4.2/2.7 | |
| Gradeability | % | 70 | |
| Slew speed | rpm | 12 | |
| Bulldozing plate | Bulldozing plate width | mm | |
| Bulldozing plate height | mm | ||
| Lifting distance | mm | ||
| Hydraulic pump type | Variable pump*1 +gear pump*1 | ||
| Slew motor type | Piston hydraulic motor | ||
| Travel motor type | Piston hydraulic motor | ||
| Fuel tank capacity | L | 135 | |
| Hydraulic oil tank capacity | L | 130 | |
