High Quality Copper Data Cable FTP CAT.5E
US$ 58.5 - 63.5
/ Box
50 Boxes(Min. Order)
- SHANGHAI/SHENZHEN/GUANGZHOU
- T/T Credit Card PayPal
You May Like
-
High Quality Copper Data Cable FTP Cat.6a
-
Made in China High Quality Data Cable UTP Cat.6
-
High Quality Networking Cable UTP Cat.6
-
Best Price Copper Cable UTP Cat.6
-
Made in China High Speed Gigabit Data Cable UTP Cat.6
-
High Quality Cat.6 FTP LSZH Shielded 4pairs Lan Cable/Network Cable ETL TIA/EIA 3P
Product Details
| Place of Origin | Sichuan, China | Brand Name | FHDT | |
| Model Number | FTP CAT5E | Type | Cat 5e | |
| Number of Conductors | 8 |
Product Description

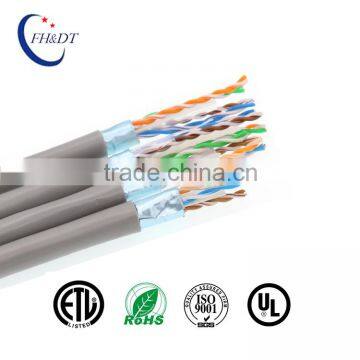

High Quality indoor LAN Network Cable FTP CAT.5E
| CAT.5E FTP LAN Structure Cable |
| Conductor Size | 24AWG |
| Conductor Material | Copper |
| No.of Conductor | 4P |
| Insulation Material | PE , HDPE |
| Jacket | PVC, ROHS PVC, LSZH PVC |
| Shield | Unshielded twisted pairs |
| Filler | without PE cross |
| Indoor/Outdoor | Single Jacket |
| Insulation Thickness | 0.2mm |
| Unrip rope | Optional |
| Jacket Thickness | 0.92-0.95mm |
| Stretching Resistance | (max)400N |
| Impedance | 100±15Ω at 1~250MHz |
| Transmission Velocity | 66% |
| Operating Temperature | -40 °C - +70 °C |
| Reference Standard | YD/T1019-2001, ANSI/TIA/EIA-568B, ISO/IEC11801 |
| PVC Jacket Color | Optional |
| Print Words On Cable | As Clients' Request |
Chengdu Datang Communication Cable, Co. Ltd. has built up optical cable and electrical
cable factory with all kinds of advanced equipments. The main part includes an 8000-sq.m
optical cable’s workshop, a 7600-sq.m Physical-foaming coaxial cable workshop and a 6200-
sq.m digital cable’s workshop. Its annual production is as follows: 3.5 million Pairs kilometers
of optical cable,70,000 kilometers of coaxial cable, and 800,000 boxes of digital cable.
