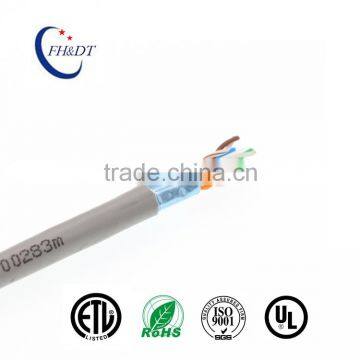

Free Sample FOB SHENZHEN High Quality LAN Network Cable FTP Cat.6a
USD $88 - $92
/ Box
50 Boxes(Min.Order)
- SHANGHAI/SHENZHEN/GUANGZHOU
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | FHDT | |
| Model Number | FTP CAT.6A | Type | Cat 6a | |
| Number of Conductors | 8 |
Product Description
| Mode | FTP CAT.6A LAN Cable | |||
| Conductor Size | 23AWG,22AWG | |||
| Conductor Material | Pure Copper | |||
| No.of Conductor | 4P | |||
| Insulation Material | PE, HDPE | |||
| Jacket | PVC, ROHS PVC, LSZH PVC | |||
| Shield | FTP | |||
| Filler | PE Cross | |||
| Indoor/Outdoor | Single Jacket | |||
| Insulation Thickness | 0.2mm | |||
| Unrip rope | Optional | |||
| Jacket Thickness | 0.92-0.95mm | |||
| Stretching Resistance | (max)400N | |||
| Impedance | 100±15Ω at 1~250MHz | |||
| Transmission Velocity | 66% | |||
| Operating Temperature | -40 °C - +70 °C | |||
| Reference Standard | YD/T1019-2001, ANSI/TIA/EIA-568B, ISO/IEC11801 | |||
| PVC Jacket Color | Optional | |||
| Print Words On Cable | As Clients' Request | |||
Chengdu Datang Communication Cable, Co. Ltd. has built up optical cable and electrical
cable factory with all kinds of advanced equipments. The main part includes an 8000-sq.m
optical cable’s workshop, a 7600-sq.m Physical-foaming coaxial cable workshop and a 6200-
sq.m digital cable’s workshop. Its annual production is as follows: 3.5 million Pairs kilometers
of optical cable,70,000 kilometers of coaxial cable, and 800,000 boxes of digital cable.
