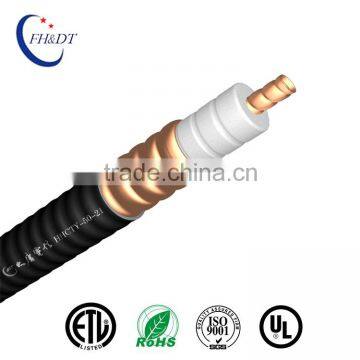

Factory Price 7/8" Superflexible RF Feeder Cable / Coaxial Cable for Wireless Communication
- SHANGHAI/SHENZHEN/GUANGZHOU
- T/T
You May Like
-
Made in China 50ohm Corrugated Superflexible RF Coaxial Cable / Feeder Cable 7/8" for telecom mobile station
Quality Choice
-
7/8" Superflexible Coaxial Cable / Feeder Cable for Mobile Operator
-
Best Price High Quality Superflexible Coaxial Cable / Feeder Cable 7/8" for Wireless Communication
-
Made in China 50ohm Corrugated Copper Superflexible RF Cable 7/8" Feeder Cable / Coaxial Cable
-
50 ohm Corrugated Copper Superflexible Communicatiion Cable 7/8" Feeder Cable
-
7/8" Superflexible RF Cable / Feeder Cable / Coaxial Cable
Product Details
| Place of Origin | Sichuan, China | Brand Name | FHDT | |
| Model Number | 7/8" Superflexible Coaxial Cable | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
50 ohm Corrugated Copper 7/8" Superflexible Coaxial Cable / Feeder Cable/ RF Cable
| 3/8″ Superflexible | 3/8″ | 1/2″ Superflexible | 1/2″ | 7/8″ Superflexible | 7/8″ | 1-1/4″ | 1-5/8″ | |
Standard Jacket | HRCAY-50-7 | HCAAY-50-8 | HRCAY-50-9 | HCAAY-50-12 | HRCTY-50-21 | HCTAY-50-22 | HCTAY-50-32 | HHTAY-50-42 | |
Fire Retardant Jacket | HRCAYZ -50-7 | HCAAYZ -50-8 | HRCAYZ -50-9 | HCAAYZ -50-12 | HRCTYZ -50-21 | HCTAYZ -50-22 | HCTAYZ -50-32 | HHTAYZ -50-42 | |
Page | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | |
Main Materials | |||||||||
Inner Conductor | Copper Clad Aluminum | Copper Clad Aluminum | Copper Clad Aluminum | Copper Clad Aluminum | Corrugated Copper-tube | Smooth Copper-tube | Smooth Copper-tube | Corrugated Copper-tube | |
Outer Conductor | Corrugated Copper-tube | Corrugated Copper-tube | Corrugated Copper-tube | Corrugated Copper-tube | Corrugated Copper-tube | Corrugated Copper-tube | Corrugated Copper-tube | Corrugated Copper-tube | |
Jacket | Standard | Linear Low Density PE | |||||||
Retardant | Non-halogen flame retardant jacket | ||||||||
| 3/8″ Superflexible | 3/8″ | 1/2″ Superflexible | 1/2″ | 7/8″ Superflexible | 7/8″ | 1-1/4″ | 1-5/8″ | |
Mechanical Performance | |||||||||
Minimum Bending Radius mm | Single Bending | 15 | 30 | 17 | 80 | 90 | 140 | 200 | 280 |
Multiple Bending | 50 | 100 | 35 | 125 | 130 | 250 | 380 | 500 | |
Weight kg/km | 110 | 120 | 210 | 250 | 450 | 570 | 980 | 1500 | |
Electrical Performance | |||||||||
Velocity % | 82 | 88 | 81 | 88 | 88 | 88 | 88 | 88 | |
Capacitance pF/m | 82 | 76 | 83 | 76 | 76 | 76 | 76 | 76 | |
Impedance Ω | 50 | ||||||||
Attenuation dB/100m 20℃ max | |||||||||
900 MHz | 14.19 | 11.86 | 11.47 | 7.04 | 4.42 | 3.94 | 3.29 | 2.78 | |
1800 MHz | 21.03 | 17.41 | 17.02 | 10.25 | 6.51 | 5.82 | 4.93 | 4.22 | |
VSWR max | |||||||||
824~960MHz | 1.20 | 1.20 | 1.20 | 1.13 | 1.20 | 1.13 | 1.20 | 1.20 | |
1700~1900MHz | 1.20 | 1.20 | 1.20 | 1.14 | 1.20 | 1.14 | 1.20 | 1.20 | |
Chengdu Datang Communication Cable, Co. Ltd. has built up optical cable and electrical
cable factory with all kinds of advanced equipments. The main part includes an 8000-sq.m
optical cable’s workshop, a 7600-sq.m Physical-foaming coaxial cable workshop and a 6200-
sq.m digital cable’s workshop. Its annual production is as follows: 3.5 million Pairs kilometers
of optical cable,70,000 kilometers of coaxial cable, and 800,000 boxes of digital cable.
