Home > Products > brass ball valve > Forged Full Port NPT Female Brass Ball Valve ,brass Ball Valve, Ball Valve ,brass Valve

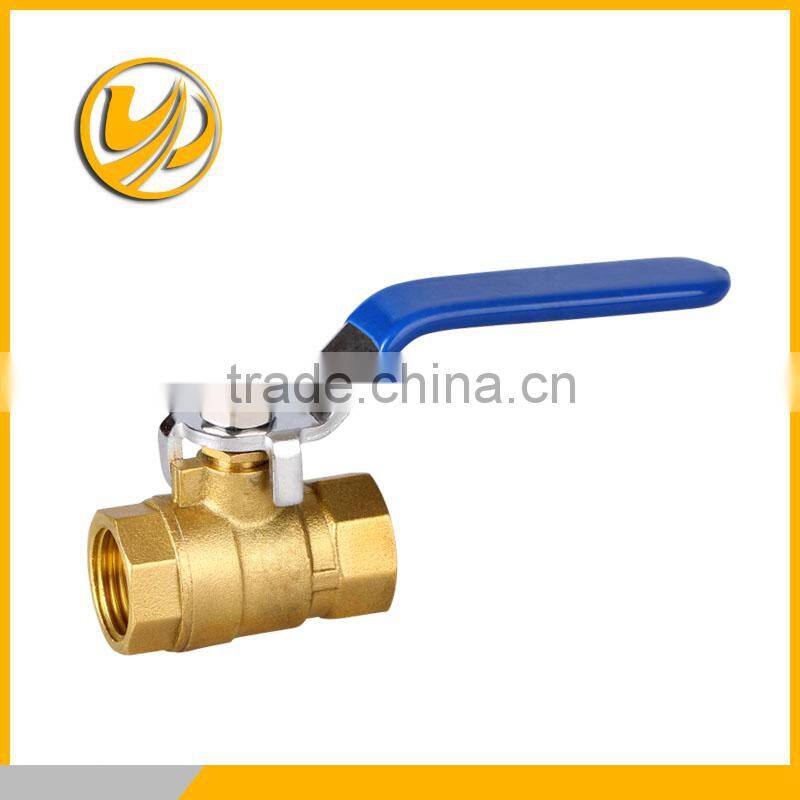

Forged Full Port NPT Female Brass Ball Valve ,brass Ball Valve, Ball Valve ,brass Valve
- NINGBO SHANGHAI
- T/T
You May Like
-
Yuhuan Supplier High Quality Full Port Female Ball Valve ,brass Ball Valve ,brass Valve ,ball Valve
-
Nipple Valve in Valves
-
Industrial Brass Ball Valve
-
High Quality Brass Mini Ball Valve ,forged Brass Ball Valve ,forged Brass Valve, Ball Valve, Valve
-
Forged Ull Port Brass Ball Valve With NPT Thread, Brass Ball Valve
-
High Performance Ball Valve
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | Medium Pressure | Power | Hydraulic | |
| Material | Brass | Temperature of Media | Medium Temperature | |
| Media | Water | Port Size | 1/2"-2" | |
| Place of Origin | China | Model Number | LX1004 | |
| Brand Name | lxty | Application | General |
Product Description
HANK YOUR FOR INTERESTING OUR PRODUCTS
| Product Description of brass ball valve |
Forged Brass ball valve (Lead Free)
1. 2-Piece ,Forged brass body full port
2. Heavy duty rust resistant handle with grip
3. Packing gland and O-ring on stem is reliable seal mode
4. Threaded ends(1/2"TO4"),600WOG,150 SWP
5. Forged Brass ball valve conform 35,Type Class A,Stype 3 and MSS SP-100.
6. -20ºC to 65ºC (-4ºF to 149ºF). temperature range
7. Forged Brass ball valve Material: H57-3, HPB59, CW 617 CW 602N
| NO. | ITEM | TOTAL | MATERIAL |
| 1 | BALL VALVE BODY | 1 | BRASS |
| 2 | SEALING WASHER | 2 | PTFE |
| 3 | BALL | 1 | BRASS |
| 4 | O-RING | 1 | NBR |
| 5 | PACKING NUT | 1 | BRASS |
| 6 | STEM | 1 | BRASS |
| 7 | HANDLE NUT | 1 | PLATED STEEL |
| 8 | LOCK WASHER | 1 | PLATED STEEL |
| 9 | BALL PACKING | 1 | PTFE |
| 10 | HANDLE | 1 | PLATED STEEL |
| 11 | BALL VALVE CAP | 1 | BRASS |
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe.
Q: Can I get samples from your factory?
A:Yes, samples can be provided,however,you pay freight.
Q:What’s your payment term?
A:T/T 30% down payment, balance to be paid before shipment,
L/C at sight, Western Union, Paypal, Alibaba online orders, etc.
Q: What is delivery time?
A: A week for sample;15-30 days for mass production.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.
