Home > Products > Asphalt Mixing Plant > LB1500(100t/h) asphalt mixer
LB1500(100t/h) asphalt mixer
- 20 Set / Sets per Month
- Qingdao
- T/T
You May Like
-
CE Approved LB2000(120-160t/h) batch asphalt plant manufacturers, continuous asphalt plant
-
asphalt mixing plant manufacturer thailand,asphalt mixing plant speco,asphalt mixing plant supplier
-
With high quality hot sale 80t/h asphalt mixing plant
-
DLB60 (60T/H) Asphalt Mixing Plant Price
-
mini asphalt mixing plant,small asphalt hot mix plant
-
mixing asphalt plant,mini asphalt plant,mini asphalt mixing plant
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | YUJIE | Model Number | LB1500 asphalt batching plant | |
| Voltage | 380V 50HZ | Power(W) | 100kw | |
| Dimension(L*W*H) | 12*6*23m | Weight | 28t | |
| Certification | CE | Warranty | 15 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
LB1500(100t/h) asphalt mixer
I.Brief to the LB series asphalt pant:
1.Ideal equipment for construction and maintenance of high-ways.
2.The filling rate is no more than 60% making bitumen, aggregates and powder well stirred.
3.The mixing scaleboard and blade use wear-resistant alloy cast iron and its mixing shaft adopts alloy cast steel.
4.The measuring device use Medianero weighing module which equipped with high precision and reliability resistance type strain sensors.
5.The control system using Siemens programming controller can carry on the automatic and manual control for the charging weighing, mixing, discharging and so on.
6.The dust collecting system adopts the combination of gravity dust collection and water dust collection or the combination of gravity dust collection and bag dust collection, dust emission is less than 50 mg/Nm
II.Technical parameters of LB series asphalt batching plant :
Type | LB500 | LB750 | LB1000 | LB1500 | LB2000 | LB2500 | LB3000 | LB4000 |
Rated production | 30-40t/h | 50-60t/h | 60-80t/h | 90-120t/h | 120-160 t/h | 160-200 t/h | 200-240 t/h | 280-320 t/h |
Cold aggregate container | 4containers | 4containers | 4containers | 4containers | 5 containers | 5 containers | 5 containers | 5 containers |
Dry cylinder | 1.1m×4.2m | 1.3m×5m | 1.5m×6m | 1.8m×7m | 2.2m×8m | 2.35m×9m | 2.5m×10m | 2.8m×11m |
Bag dust-remover | CNM156 | CNM240 | CNM357 | CNM476 | CNM654 | CNM832 | CNM1012 | CNM1308 |
Emission standard | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 |
Vibrating screen | 4 layers | 4 layers | 4 layers | 4 layers | 5 layers | 5 layers | 5 layers | 5 layers |
Hot aggregate container | 12t | 12t | 26t | 26t | 5/40t | 40t | 80t | 100t |
Mixing kettle capacity | 500kg | 750kg | 1000kg | 1500kg | 2000kg | 2500kg | 3000kg | 4000kg |
Mixing cycle | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s |
Mineral powder tank volume | 30t | 30t | 26+36t | 26+36t | 30+43t | 30+43t | 50+35t | 60+35t |
Asphalt tank volume | 30000L | 30000L | 50000L | 50000L | 2×50000L | 2×50000L | 3×50000L | 4×50000L |
Heat conduction oil stove | 200,000 kcol/h | 200,000 kcol/h | 300,000 kcol/h | 300,000 kcol/h | 500,000 kcol/h | 500,000 kcol/h | 800,000 kcol/h | 1,000,000 kcol/h |
End-product container volume | 50t | 50t | 90t | 90t | 110t | 110t | 200t | 200t |
III.Some pictures of asphalt batching plant :
1.Design sketch

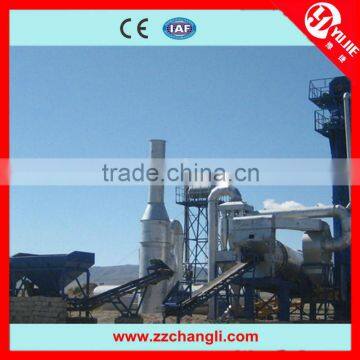

2.Gernal View
Contact us freely to get more details.
Contact: Allen
Cell phone: +8613700867477
