Transformer Cable 15kV 200A Loadbreak elbow connector Parts
- Ningbo
- T/T
You May Like
-
Transformer 15kV 600A Insulated Protective Cap Cable accessories
-
Transformer 15kV 200A Bushing Insert Casing Joint Cable Accessories
-
Transformer 15kV 200A Rotatable Casing Joint Cable Accessories China
-
Transformer Accessories 25kV 200A Two-way Casing Connector
-
Transformer Components 24kV 250A Insulated Protective Cap
-
Transformer 24kV 250A Loadbreak Elbow Connector Cable Splice
Product Details
| Place of Origin | Zhejiang, China | Model Number | DS PT ZT-15/200 | |
| Conductor Material | Copper | Insulation Material | Rubber | |
| Jacket | Rubber | Application | Pad-mounted Transformer |
Product Description

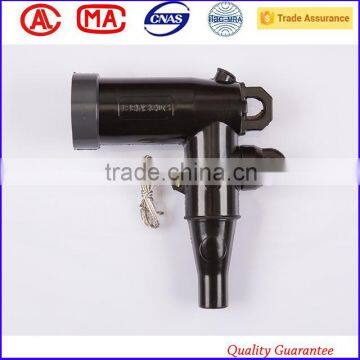

15kV 200A Elbow Connector
This connector is a fully-shielded and insulated plug-in termination for connecting underground cable to distribution power system of pad-mound transformer, surrounding power supply branch box, cable branch box equipped with loadbreak bushing. The elbow connector and bushing insert comprise the essential components of all loadbreak connections. It can mate with 200A bushing insert and 200A jack of T-II connector, 200A junction, loadbreak bushing insert(loadbreak rotatable feedthru insert), apparatus bushing and 600A/200A bushing extender. It can operating switch of 200A loading current. The test point is used to connect hot voltage indicator.
The loadbreak elbows are molded using high quality sulfur-cured insulating and semi-conducting EPDM rubber. The available conductor cross section is 35-50m㎡ for 15kV cable. The conductive pole W/ARC extinguished function.
