prefabricated house at construction site for labor camp/dorm/office building

FOB Price

US$ 60 - 75 / Square Meter

50 Square Meters(Min. Order)

Port Xingang(tianjin)
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China	Brand Name	CDPH
Model Number	A Type house	Material	Steel
Use	Carport, Hotel, House, Other, Shop, Toilet, Warehouse, Carport, Hotel, House, Kiosk,Booth, Sentry Box,Guard House, Shop, Toilet, Warehouse, Workshop,Plant

Product Description

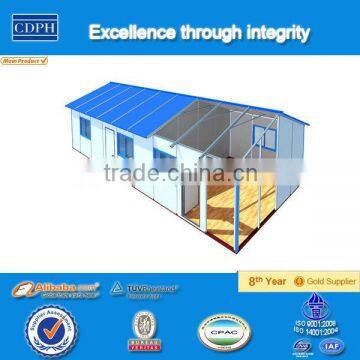

Prefabricated house (A type) is a standard modular house. The width is 5.048m as fixed size but the inside layout can be designed as per customers’ requirements. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and four workers can finish 120m2 in 8 hours according to instruction and CD.

The detailed information as follow:

No.		Main Item	Subitem	Specification	Remark
1	Basic Information	Product Item	Stardard Position	Standard	/
2		Product Item	Possibility of Reassemble	Suitable for disassembled and reassembled	/
3		Basic Specification	Span	5060mm	Fixed
4			Length	(n-2)1224+21106mm	n is integer,and 4≤n≤40
5			Wall Height	2700mm	/
6			Net Height	2700mm	/
7			Ridge Height	3750mm	/
8		Technical Data	Roof Live Load	0.3 KN/m2	/
9			Wind Load	0.45 KN/m2	/
10			Suitable Temperature	(-)15°C~(+)50°C	/
11	Material Data	Structure	Column	cold bend steel plate	grey color
12			Main Beam	cold bend steel plate	grey color
13			Tie Rod	steel plate bending	galvanized and painting
14			Floor Beam	steel plate bending	anti-rust painting
15		Items Required to Maintain	Wall Panel	50mm color steel sandwich panel	white in double side
16			Roof Panel	60mm color steel sandwich panel	top:blue bottom:white
17			Door	outdoor:sandwich panel door	EPS insulation
18			Door	indoor:sandwich panel door	EPS insulation
19			Window	color steel sliding window	blue
20	Installation	Tools	spanner, tape, etc.		requiring electric power at working site
21	Installation	Efficiency	(construction area)120m2 per day by four people(Main Structure)		simple training
22	Loading	Square Meter	around 350m2/40 HC(Main Structure)		/

E

Export Market Distribution:

Market	Revenue(Previous Year)	Total Revenue (%)
South America	confidential	8.0
Southeast Asia	confidential	12.0
Africa	confidential	42.0
Oceania	confidential	5.0
Mid East	confidential	1.0
Eastern Asia	confidential	3.0
Central America	confidential	4.0
South Asia	confidential	7.0
Domestic Market	confidential	18.0

Production Machinery:

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used	Condition
Punching Machine	JB23-63A	4	7.0	Acceptable
Sawing Machine	No Information	4	7.0	Acceptable
Drilling Machine	ZQ4-16	13	3.0	Acceptable
Bending Machine	WC67Y, SCFHB-001	4	7.0	Acceptable
Shearing Machine	QC12Y-4*4000	2	7.0	Acceptable
Coreboard Production Line	No Information	3	7.0
