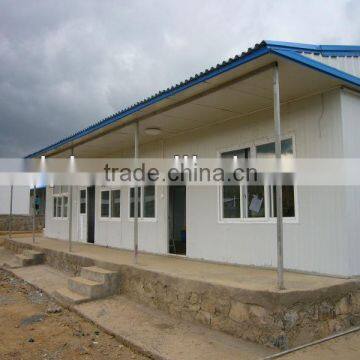

movable labor camp

No.

Sort

Name

Specification

1

Specification

length

No limited

2

Width

Less than 11m

3

Wall height

2600mm/2800mm

4

Clear height

2600mm/2800mm

5

Roof slope

15°

6

Standard accessory

Wall board

75mm thickness double color-steel sandwich panel with polystyrene foam inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/ m².k.

7

False ceiling

75mm thickness double color-steel sandwich panel with polystyrene foam inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/ m².k.

8

Roof board

color steel corrugated sheet, 0.5mm thickness

9

Outside door

Security door, single door with dimensions of 900*2100mm, furnished with a handle lock with 3keys. Doorframe is made of 1.2mm steel, and door is made of 0.7 mm steel, 90mm thick rock wool insulation foam.

10

Inside door

SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.

11

Window(W-1)

PVC, white color, with dimensions of 1200*1200mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen.

12

Window(W-2)

PVC, white color, with dimensions 500*500mm, glazed with glass in a thickness of 5mm, casement opening, supplied with fly screen.

13

Channel

Galvanized Steel Plain Sheet press moulding Material: Q235. Painted

14

Post

Square steel tube Material: Q235. Painted

15

Purline

Square steel tube Material: Q235. Painted

16

Roof truss

Square steel tube Material: Q235. Painted

17

Decoration and connection

color steel sheet, 0.35mm thickness

18

Option

Decorative floor

PVC, laminated or ceramic tile

19

Drainage system

Provided plan, design and construction

20

Electric system

Provided plan, design and construction

21

Technical parameter

Bearing load

30kg/m²

22

Wind pressure:

0.45KN/M2

23

Fire proof

B2 grade

24

Resistant temperature

-20 ºC to 50ºC
