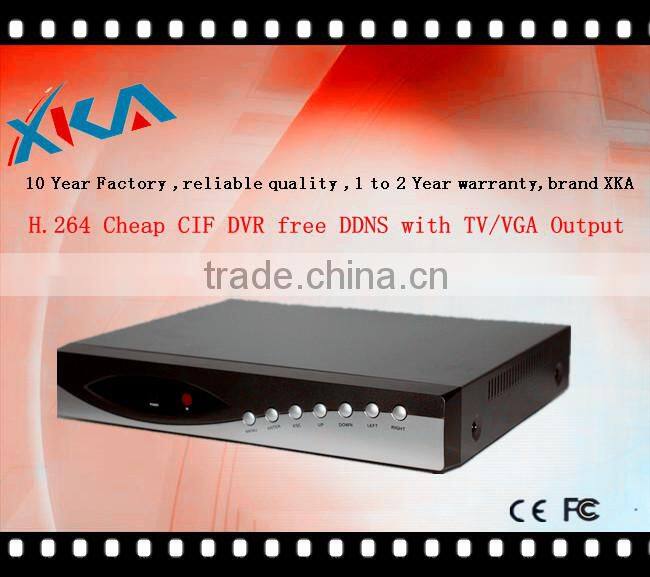

CCTV DVR mobile surveillance equipment,economical 8ch DVR

FOB Price

USD $35 - $37 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	XKA
Model Number	XKA--7108

8ch DVR
1.Embedded LINUX system
2.Built-in free DDNS
3. ZHIYUAN chipset
4.CE cetificate

Newest 8ch DVR

1.Embedded LINUX system
2.Built-in free DDNS
3. ZHIYUAN chipset
4.CE cetificate

Specification

Model :	7108	7104
Operation system	Embedded Linux operation system
System resources	Multi-channel real-time record and playback, multi-channel and multi-user network operation, USB backup
Operation interface	16bit real color graphic Operation interface, Support mouse operation
Video standard	PAL(625lines, 50fps),NTSC(525lines, 60fps)
Video compression	H.264
Audio compression	G.711
Record mode	manual>alarm>motion detection>timing
Video search	Time/date ,event , channel , log
Backup mode	Network backup ,USB moveable harddisk backup
Video input	8ch BNC	4CH BNC
Video output	1ch BNC,1ch VGA
Audio input	8CH RCA	4ch RCA
Audio output	1ch RCA
intercom	support
Monitoring quality	PAL: 720576 (D1) ; NTSC:720480 (D1)
Playback quality	PAL:352288(CIF) ; NTSC:352240(CIF)
Image control	6 degree adjustable
Motion detection	Each channel can set up single detection zones, and multistage sensitivity
Image split	1/4/9	1/4
record rate	PAL: 1~25fps (adjustable), NTSC:1~30fps (adjustable)
record storage	Local HDD and network
Local playback	1~8ch	1~4ch
Alarm input	NO
Alarm output	NO
PTZ control	RS485
HDD Interface	1 SATA
Network	1 RJ45 10M/100M adjust-automatically Ethernet interface
USB interface	2 USB2.0 high-speed interface
Power supply	DC 12V
Ax dimension	21026042mm
