Product Details
| Brand Name | WF | Model Number | WF-2000A |
Product Description

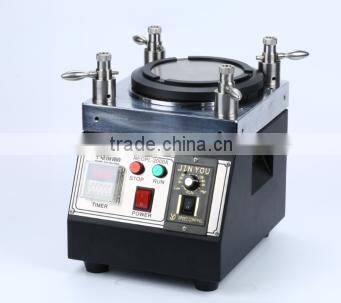

WF-2000A Polishing Machines | Domaille Engineering | Optical Fiber Polishing
It is widely used for polishing UPC and Angled connector of SC / FC / E2000 / ST / MU and LC.
1. Designed for fiber optic connector polishing, 220V AC 50/60Hz input voltage.
2. It is widely used for polishing UPC and Angled connector of SC / FC / E2000 / ST / MU and LC.
3. Different connectors request different type polishing jigs, low cost for polishing jigs.
4. Speed adjustable and applicable to manufacture connector with high quality requirements.
5. Polishing high efficiently, jigs could polish 18 or 40 connectors per cycle.
6. Use with Neoholder® SC-48-F25, and polish 48 ferrules per cycle.
7. Easy to handle and compact size.
Standard configuration:
Polishing Machine, WF-2000A | 1 set |
AC Power Cable | 1 pc |
Patchcord Shelf | 1 set |
Optional Fixture/Jig List:
No. | Part # | Connector Type | Polishing Capacity |
1 | PC-18-FF | φ2.50 mm PC Ferrule Style | 18 positions |
2 | LC-20-FF | Φ1.25 mm PC Ferrule Style | 20 positions |
3 | FC-PC-20 | FC/PC connector Style | 20 positions |
4 | ST-PC-20 | ST/PC connector Style | 20 positions |
5 | SC-PC-20 | SC/PC connector Style | 20 positions |
6 | SC-PC-24 | SC/PC connector Style | 24 positions |
7 | SC-PC-32 | SC/PC connector Style | 32 positions |
8 | MU-PC-20 | MU/PC connector Style | 20 positions |
9 | LC-PC-24 | LC/PC connector Style | 24 positions |
10 | LC-PC-40 | LC/PC connector Style | 40 positions |
11 | E2000-PC-18-HS | E2000/PC HS Metal Ferrule Style | 18 positions |
12 | E2000-PC-18-RM | E2000/PC R&M Ferrule Style | 18 positions |
13 | FC-APC-18 | FC/APC connector Style | 18 positions |
14 | ST-APC-18 | ST/APC connector Style | 18 positions |
15 | SC-APC-18 | SC/APC connector Style | 18 positions |
16 | MU-APC-18 | MU/APC connector Style | 18 positions |
17 | LC-APC-18 | LC/APC connector Style | 18 positions |
18 | E2000-APC-18-HS | E2000/APC HS Metal Ferrule Style | 18 positions |
19 | E2000-APC-18-RM | E2000/APC R&M Ferrule Style | 18 positions |
20 | MTRJ-18 | MTRJ Ferrule Style | 18 positions |
21 | MPO-18 (MTP-18) | MPO Ferrul Style | 18 positions |
Rubber Pad and Polishing Film:
No. | Part # | Diameter Size / Thickness / Description | HARDNESS |
1 | PR5X-500-60 | dia127mm, 5.00mm thick rubber pad | 60 Shore Hardness |
2 | PR5X-500-65 | dia127mm, 5.00mm thick rubber pad | 65 Shore Hardness |
3 | PR5X-500-70 | dia127mm, 5.00mm thick rubber pad | 70 Shore Hardness |
4 | PR5X-500-75 | dia127mm, 5.00mm thick rubber pad | 75 Shore Hardness |
5 | PR5X-500-80 | dia127mm, 5.00mm thick rubber pad | 80 Shore Hardness |
6 | PR5X-500-85 | dia127mm, 5.00mm thick rubber pad | 85 Shore Hardness |
7 | PR5X-500-90 | dia127mm, 5.00mm thick rubber pad | 90 Shore Hardness |
9 | GRISH-D30 | 30 micron Diamond Polishing Film | Epoxy Removal |
9 | GRISH-D9 | 9 micron Diamond Polishing Film | Coarse Polishing |
10 | GRISH-D3 | 3 micron Diamond Polishing Film | Medium Polishing |
11 | GRISH-D1 | 1 micron Diamond Polishing Film | Fine Polishing |
12 | ADS-127 / XF5D | Final Polishing film | Final Polishing |
Orders would be shipped within 3 working days upon receiving cleard payments when stock lasts. Delievery time depends on the shipping method, the following is the typical time:
Faster courier(Such as EMS, DHL, UPS...) would take 3-7 days.
Air mail(Hong Kong air mail, Singapore air mail) would take 10-20 days.
Package might be delayed occasionally by the Customs or the carrier, we sincerely hope each customer could give a few more days when this happens.
